Overview

---

VRayLUT is a V-Ray utility node that allows you to apply a look up table (a .cube file) to any texture for managing resulting colors.

In the example shown a Kodak5205Fuji3510.cube LUT file has been loaded to define the texture's look.

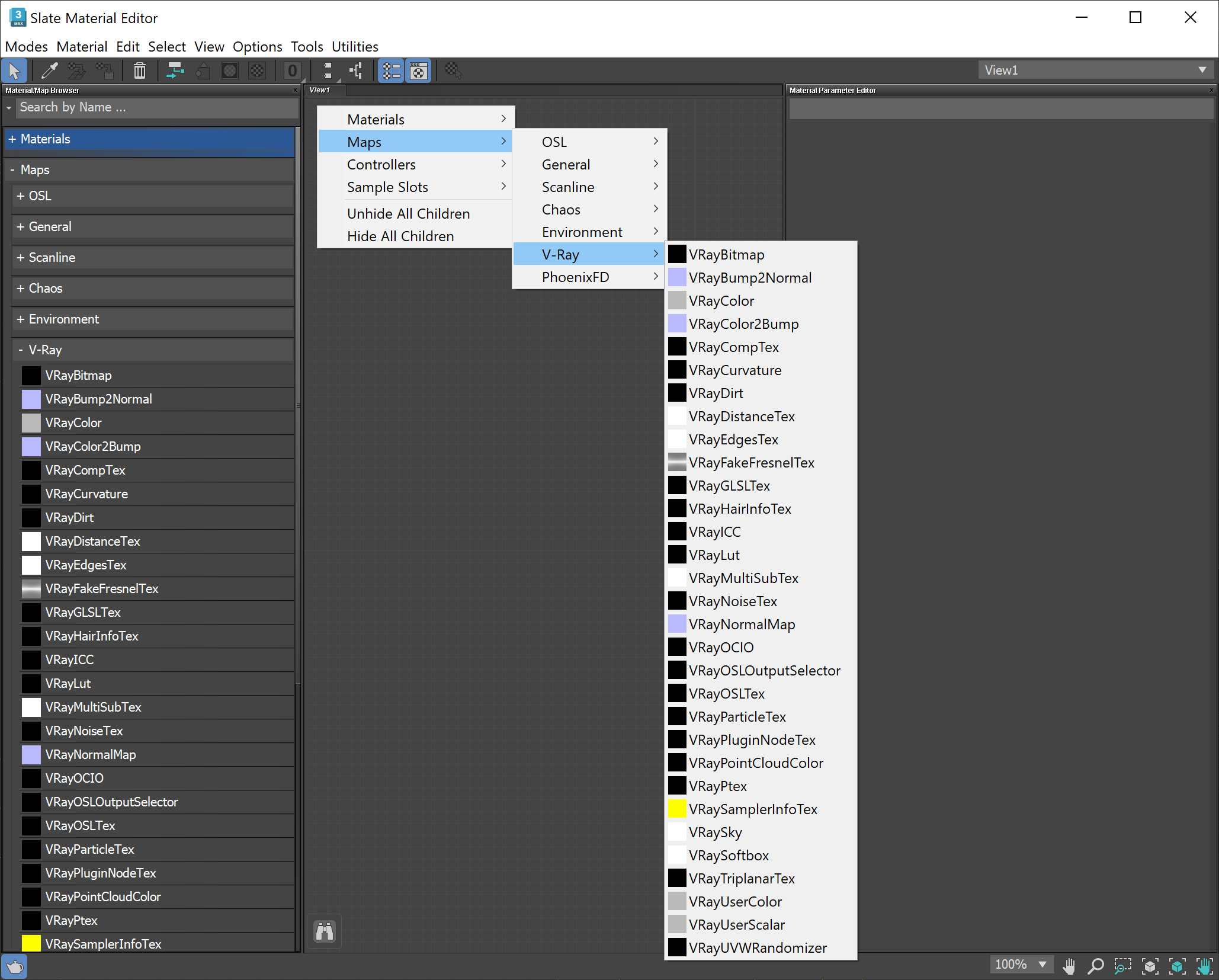

UI Path: ||Material Editor|| > Material/Map Browser > Maps > V-Ray > VRayLut

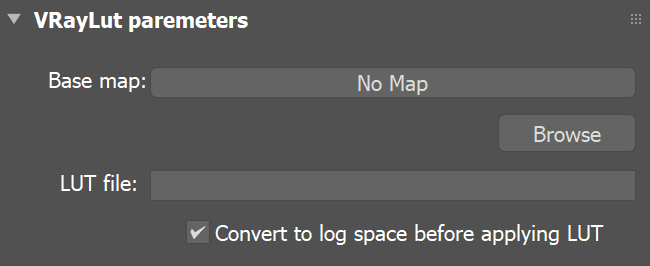

Parameters

---

Base map – A slot to load the map that you want the LUT to be applied to.

Browse – Click to load the look up table.

LUT file – Specifies the location of the look up table.

Convert to log space before applying LUT – Converts the Base map to a logarithmic color space before applying the look up table.
