Overview

VRayMtl is a very versatile material that allows for better physically correct illumination (energy distribution) in the scene, faster rendering, and more convenient reflection and refraction parameters. This material can simulate a huge variety of surfaces from plastics to metals to glass and more with a handful of adjustments to the parameters.

Furthermore, with the VRayMtl you can apply different texture maps, control the reflections and refractions, add bump and displacement maps, force direct GI calculations, and choose the BRDF for how light interacts with the surface material.

Find more information about VRayMtl structure at V-Ray Material Structure.

UI Path: ||Material Editor window|| > Material/Map Browser...

||Material Editor|| > Material/Map Browser > Materials > V-Ray > VRayMtl

||V-Ray Toolbar|| > V-Ray Material button

||V-Ray menu|| > Create > Materials > VRayMtl

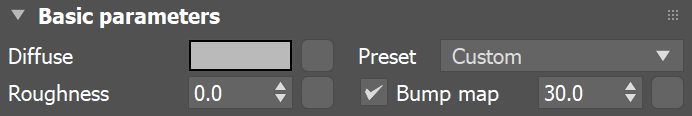

Basic Parameters

Diffuse – Specifies the diffuse color of the material. Note the actual diffuse color of the surface also depends on the Reflect and Refract colors. A texture can be applied to the Maps rollout. See the Energy preservation parameter below.

Roughness – Used to simulate rough surfaces or surfaces covered with dust (for example, skin, or the surface of the moon). A texture can be applied to the Maps rollout. For more information, see the Roughness Parameter below. This parameter is not available when the renderer is set to GPU.

Preset – A drop-down menu with preset values for commonly used materials. See the VRayMtl Presets page for more information. Pr esets use settings that work well (in terms of speed and realism) as a starting point or for general-use cases. However, when a custom scene requires it, further editing the material parameters values works best. For example, Glass and Glass (Tinted) use glossiness values that speed up rendering, but rendering a close-up view of a realistic glass object may require further adjustments . For an in-depth approach, refer to the How-To tutorials .

Non-realistic material presets, such as Chocolate, Plastic, Ceramic, and Rubber are ‘quick’ compared to their realistic (SSS-enabled) counterparts. They can recreate generic plastic for the plastic backs of computer monitors or laptops in a meeting room, or for the car tires in a scene where the cars are somewhere in the distance, etc.

Bump map – Controls the Bump texture used for the material.

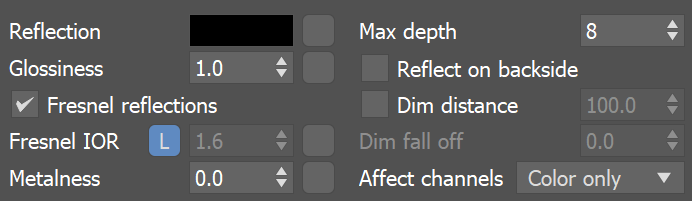

Reflection

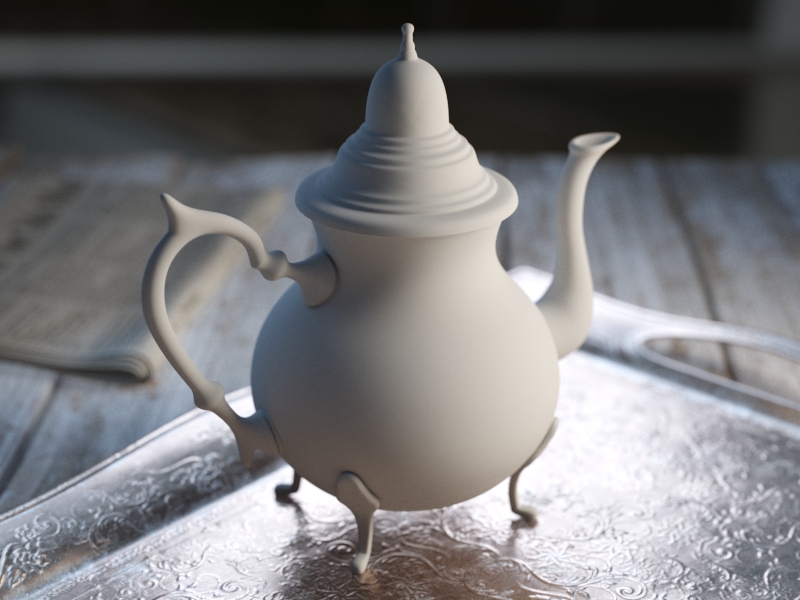

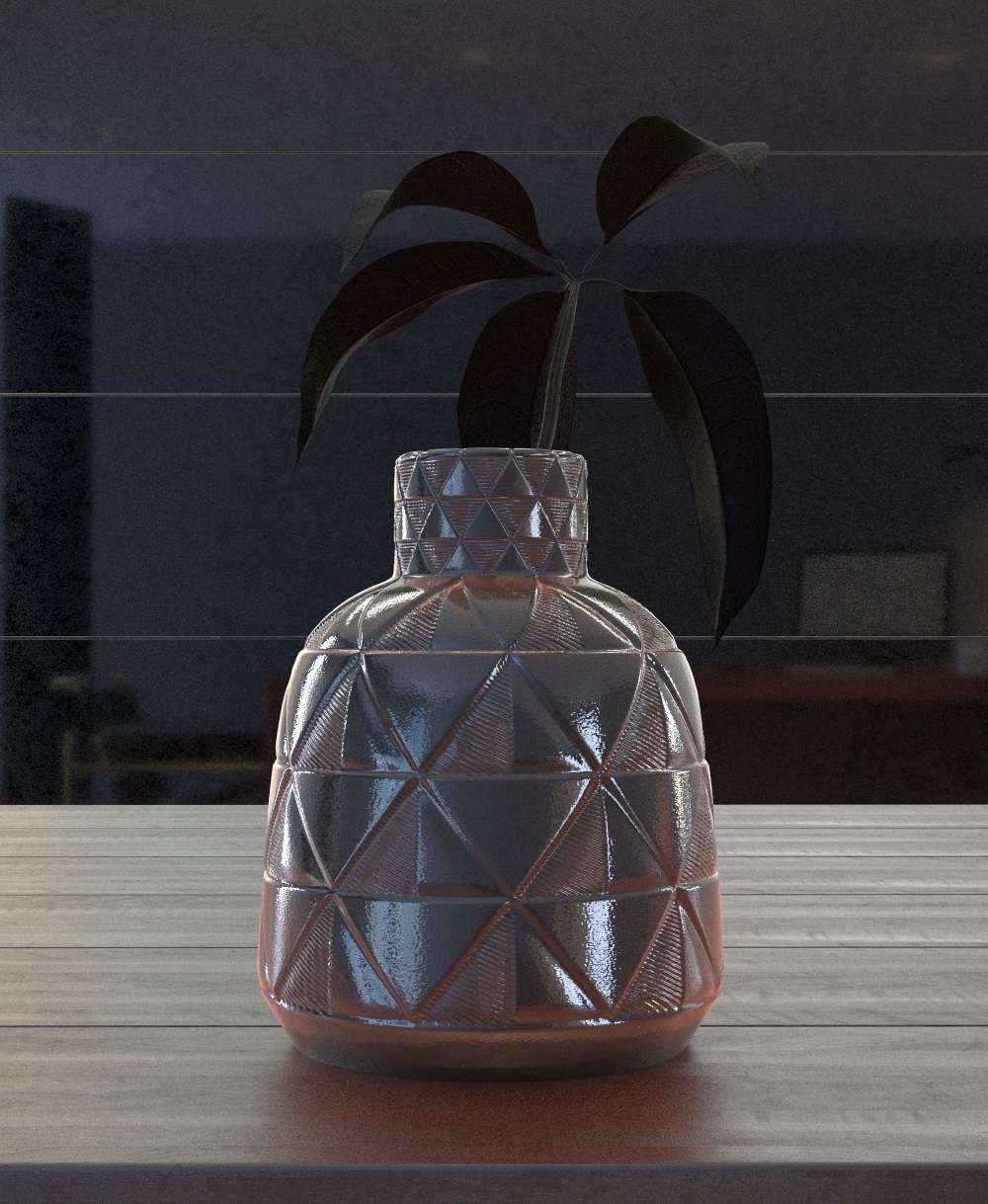

Reflect – Specifies the amount of reflection and the reflection color. Note that the reflection color dims the diffuse surface color based on the Energy preservation mode option. This parameter can be mapped with a texture in the Maps rollout. For more information, see the Reflection Color example below.

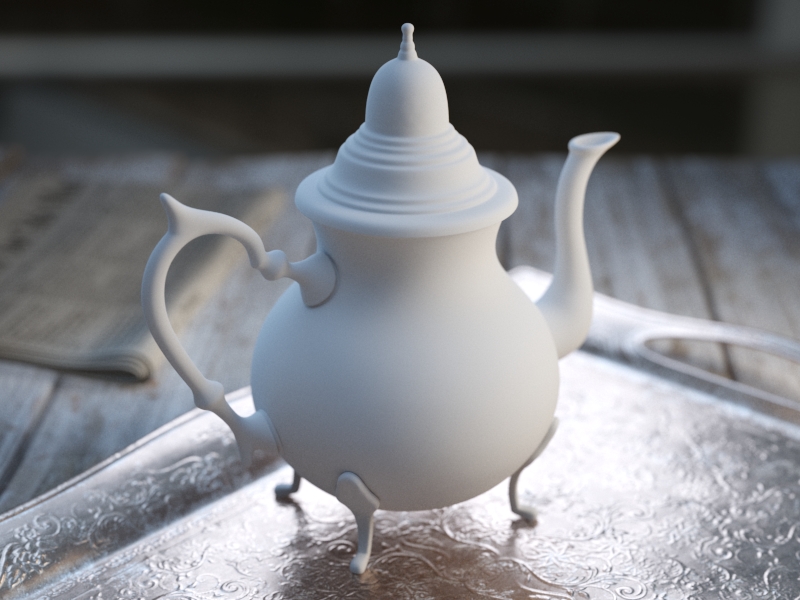

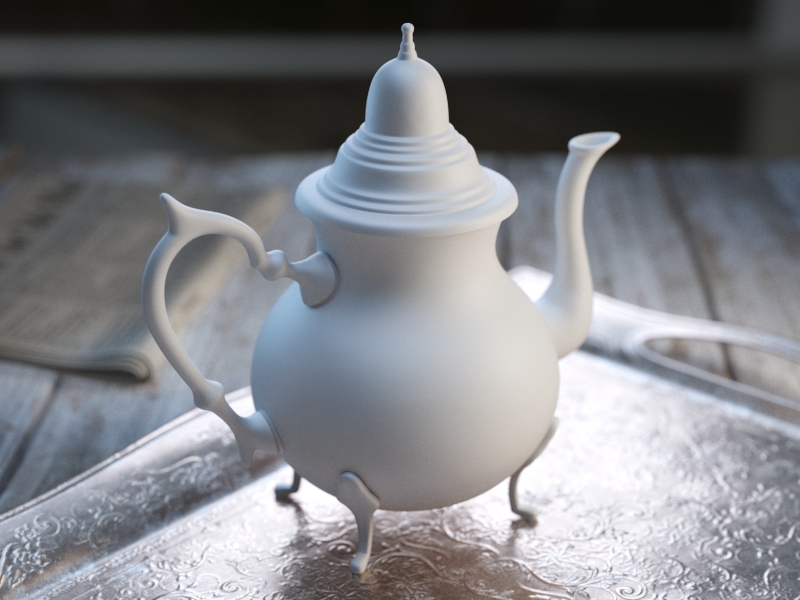

Glossiness – Reflection glossiness. Controls the sharpness of reflections. A value of 1.0 means perfect mirror-like reflection; lower values produce blurry or glossy reflections. For more information, see the Reflection Glossiness example below. If BRDF is set to Use roughness, this option becomes Reflection roughness. For more information, see the V-Ray Roughness page.

Fresnel reflections – When enabled, the reflection strength becomes dependent on the viewing angle of the surface. Some materials in nature (glass, etc.) reflect light in this manner. Fresnel reflections calculation also interpolates glossy reflections and refractions on a 'microfacet' level to ensure more natural effect with less brightening of the grazing edges as the glossiness is decreased. Note that the Fresnel effect depends on the index of refraction as well.

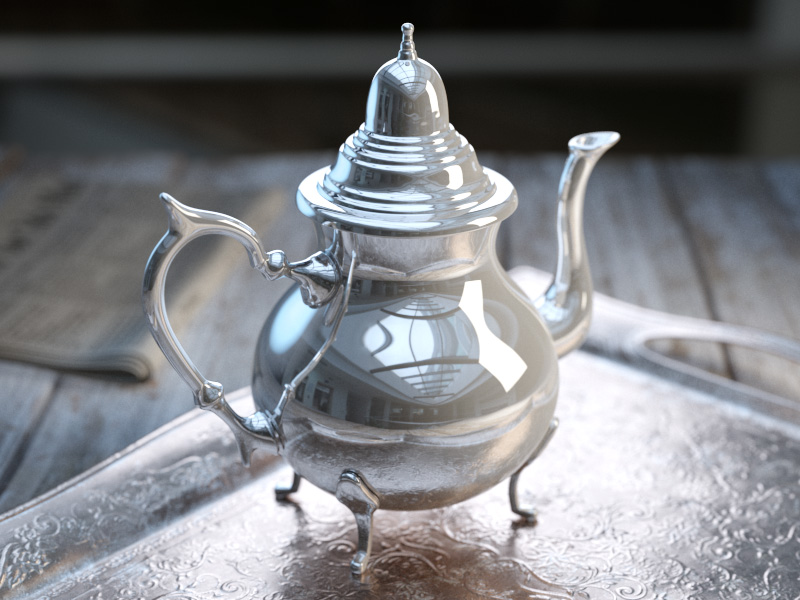

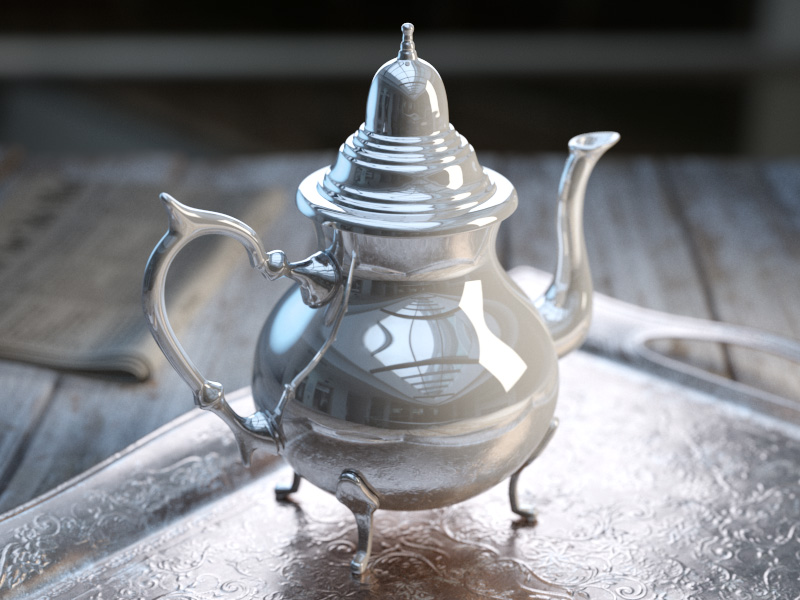

Fresnel IOR – Specifies the IOR to use when calculating Fresnel reflections. Normally this is locked to the Refraction IOR parameter, but it can be unlocked for finer control. This parameter can be mapped with a texture in the Maps rollout. Note that this parameter has no effect on metallic materials with Metalness value of 1.0. For more information, see the Fresnel Option example below.

Metalness – Controls the reflection model of the material from dielectric (metalness 0.0) to metallic (metalness 1.0). Note that intermediate values between 0.0 and 1.0 do not correspond to any physical material. This parameter can be used with PBR setups coming from other applications. For more information, see Understanding Metalness blog post and "Artist Friendly Metallic Fresnel" article by Ole Gulbrandsen. For real-world metal examples and how to set them, see the Metal Shaders page.

Max depth – Specifies the number of times a ray can be reflected. Scenes with lots of reflective and refractive surfaces may require higher values to look right. For more information, see the Reflection Depth example below.

Reflect on back side – When enabled, reflections are computed for back-facing surfaces too. Note that this affects total internal reflections too (when refractions are computed).

Dim distance – Specifies the distance after which the reflection rays are not traced.

Dim fall off – Specifies the fall off radius for the dim distance.

Affect channels – Specifies which channels are affected by the reflection of the material.

Color only – The reflection affects only the RGB channel of the final render.
Color+alpha – The material transmits the alpha of the reflected objects instead of displaying an opaque alpha.
All channels – All channels and render elements are affected by the reflections of the material.

When selecting the Affect All channels option, be aware that the information of the respective component affects all render elements, therefore the Back to Beauty composition will not match the RGB result from the renderer.

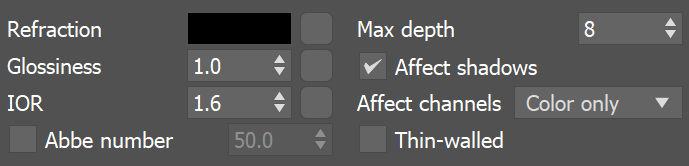

Refraction

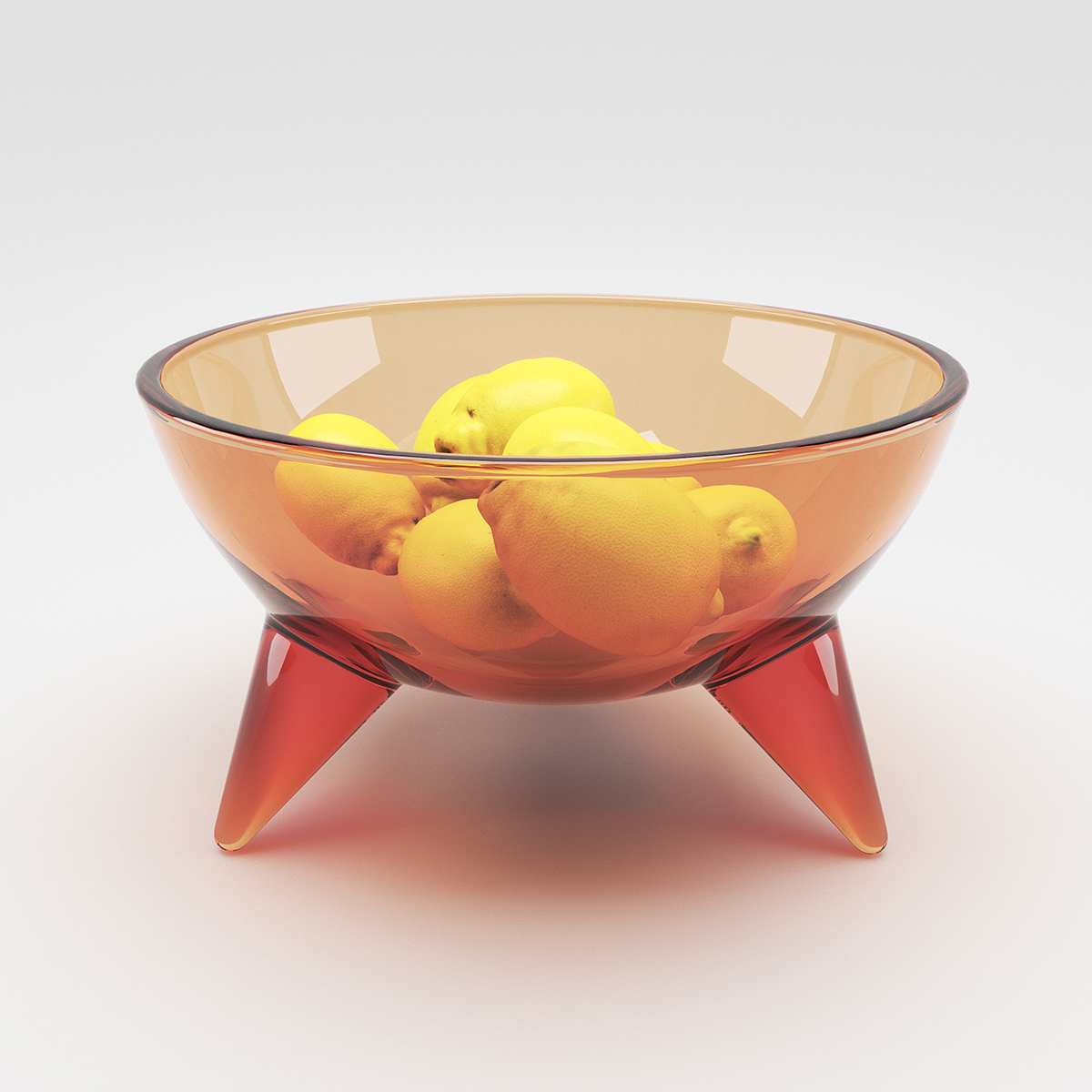

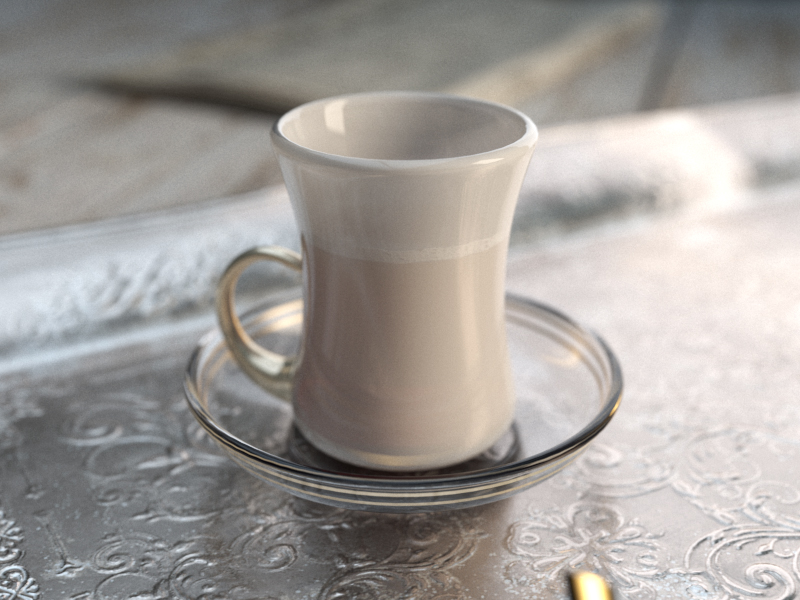

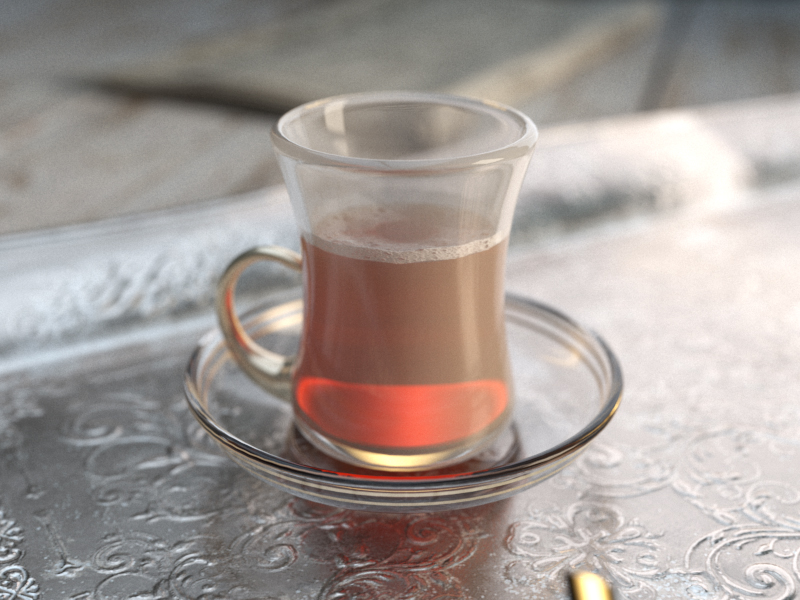

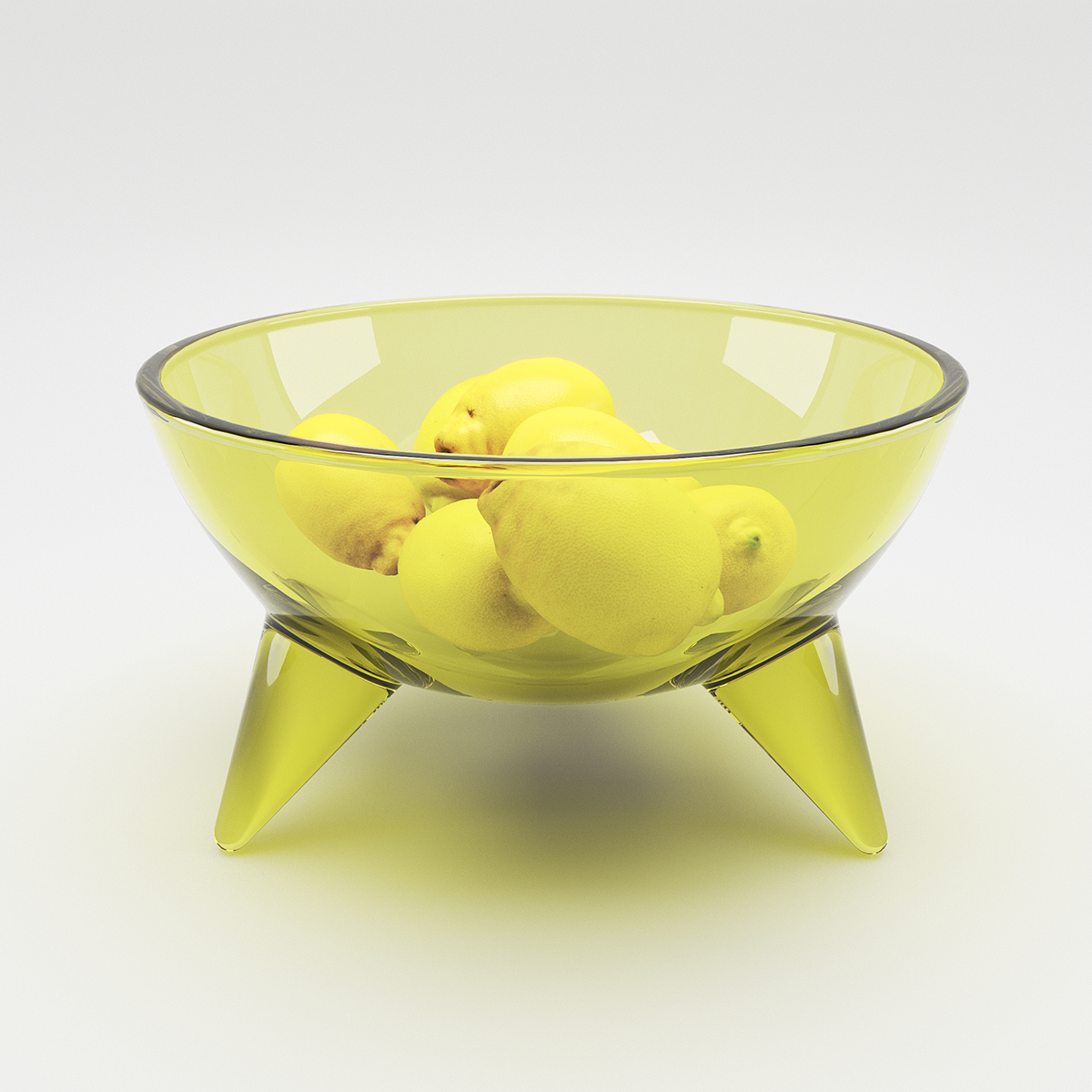

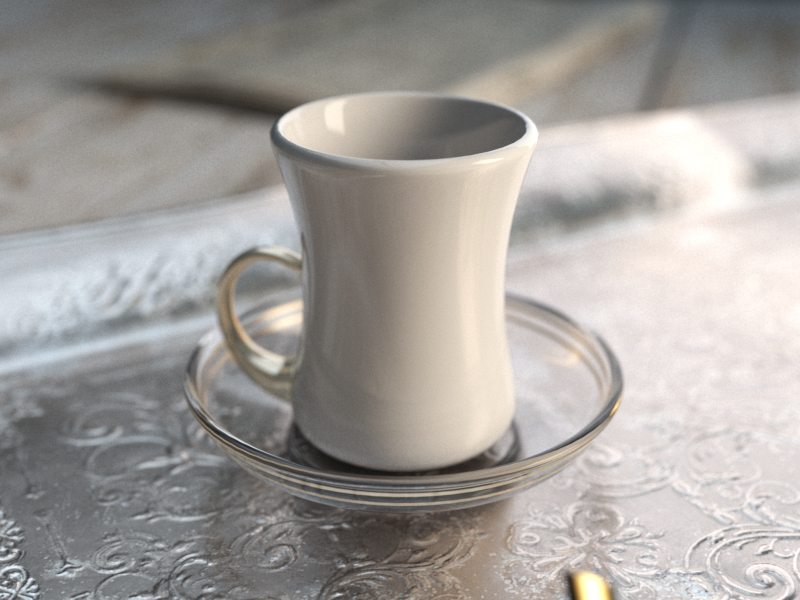

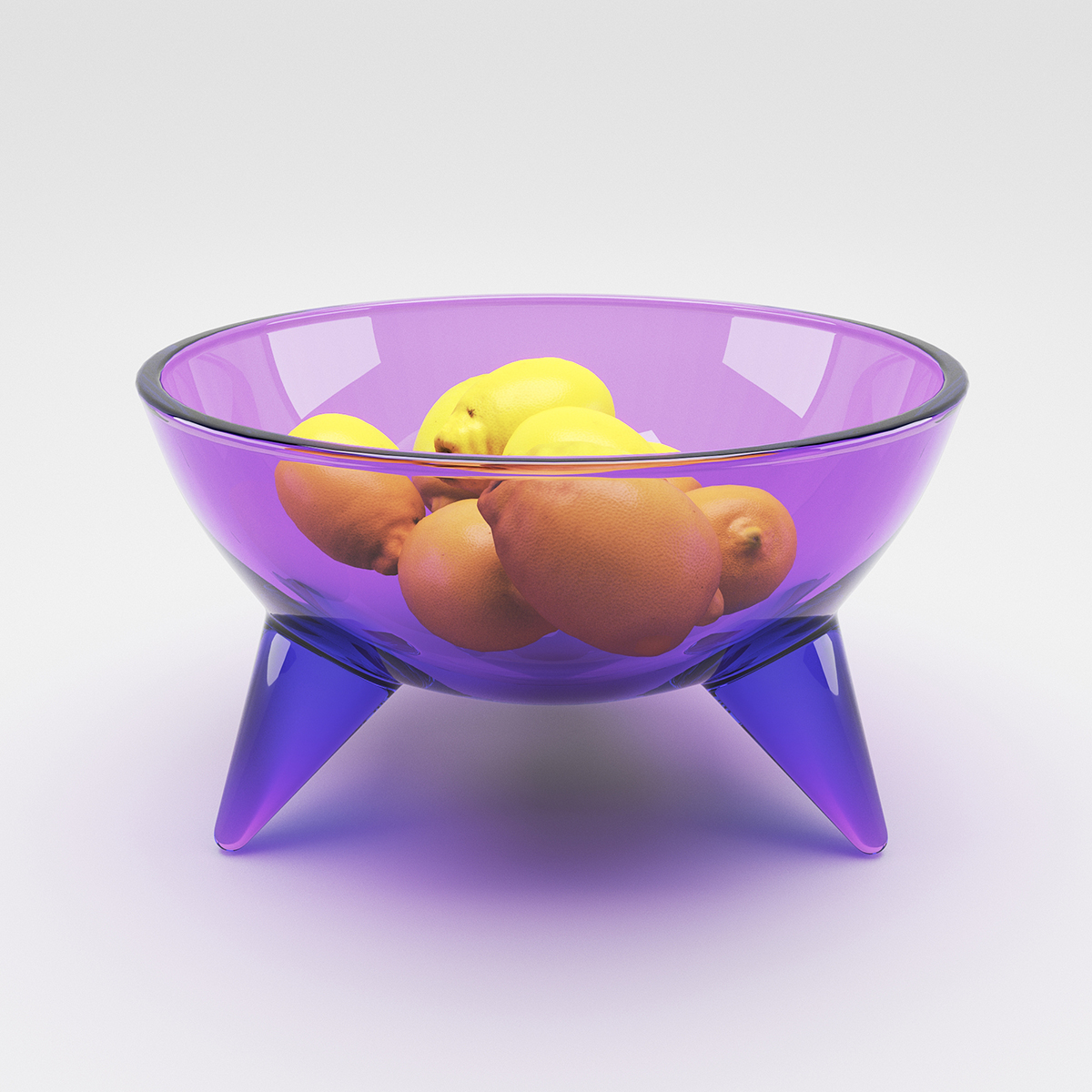

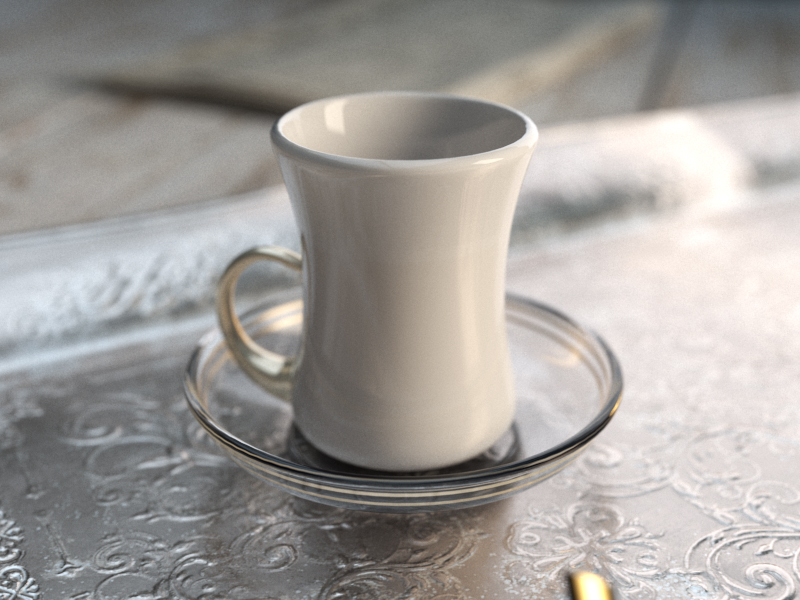

Refract – Specifies the amount of refraction and the refraction color. Any value above zero enables refraction. Note that the actual refraction color depends on the Reflect color as well. This parameter can be mapped with a texture in the Maps rollout. For more information, see the Refraction Color example below.

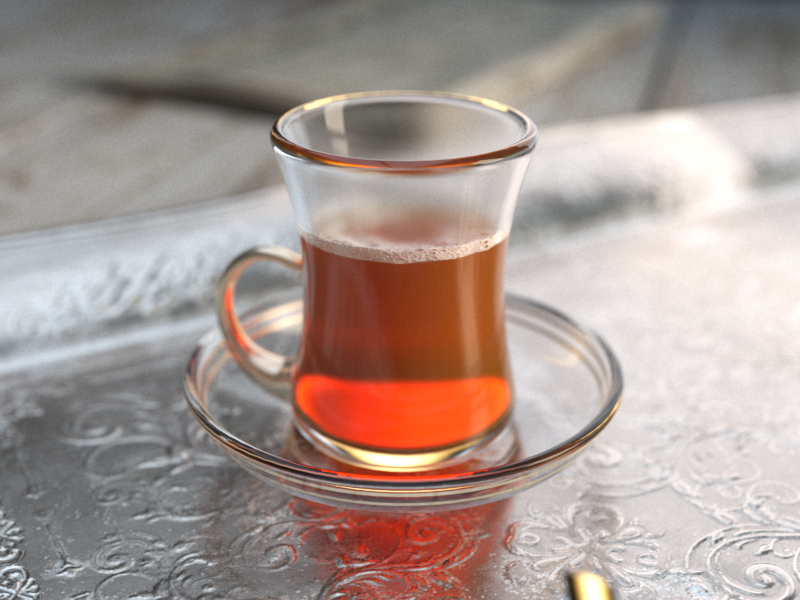

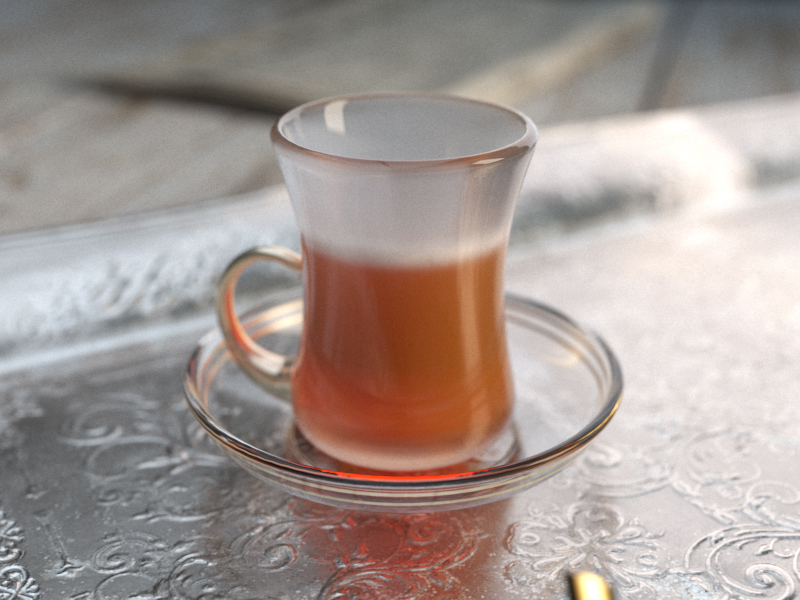

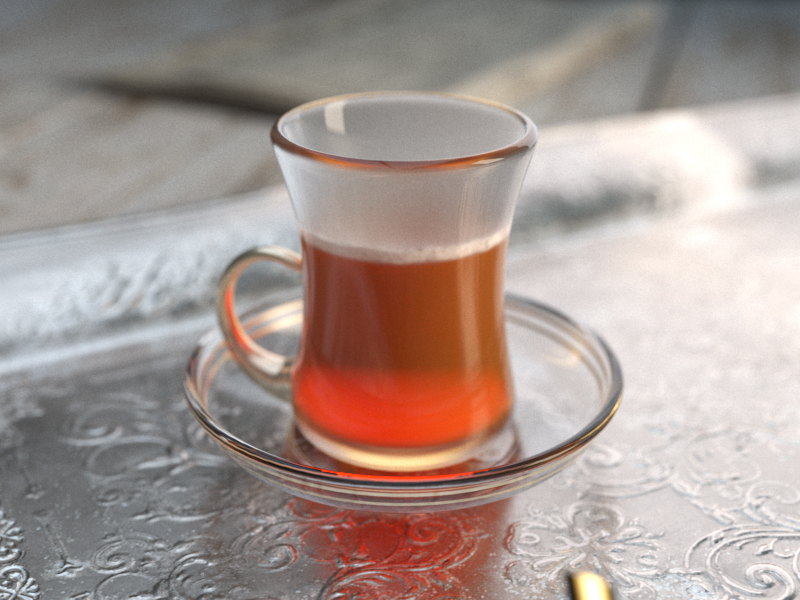

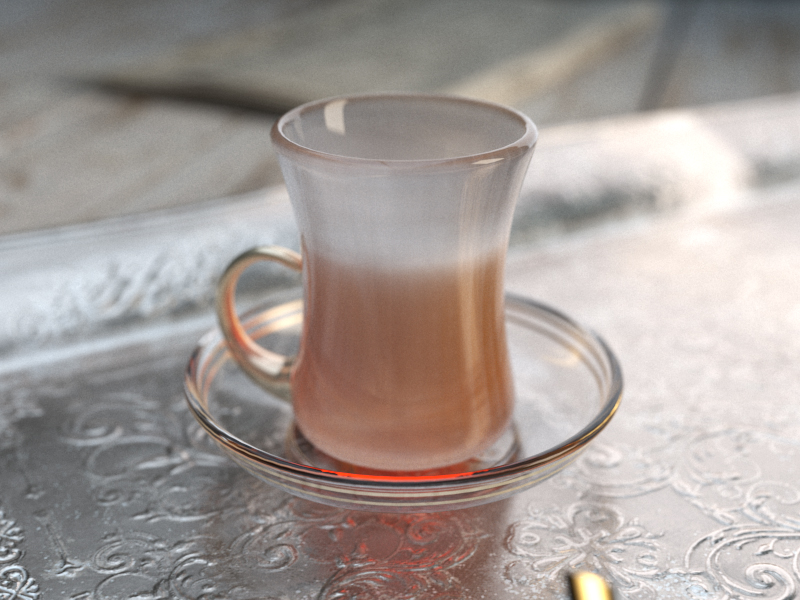

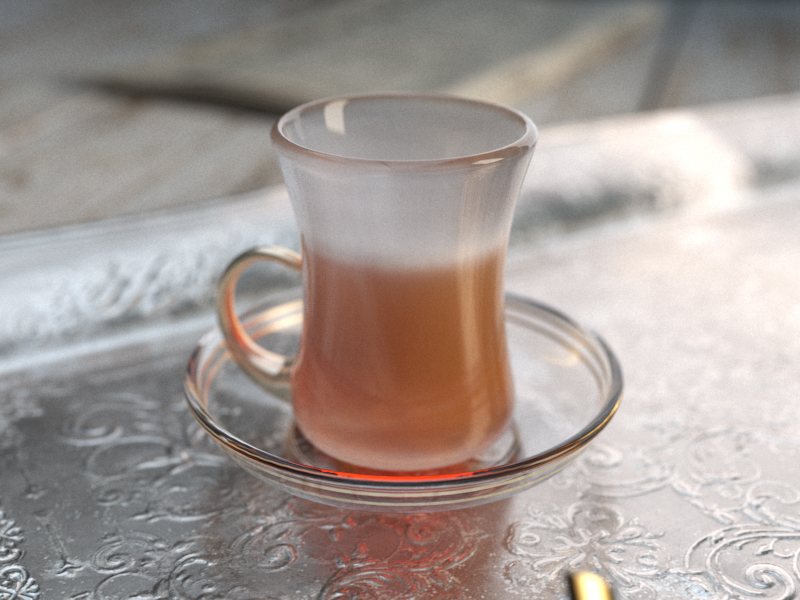

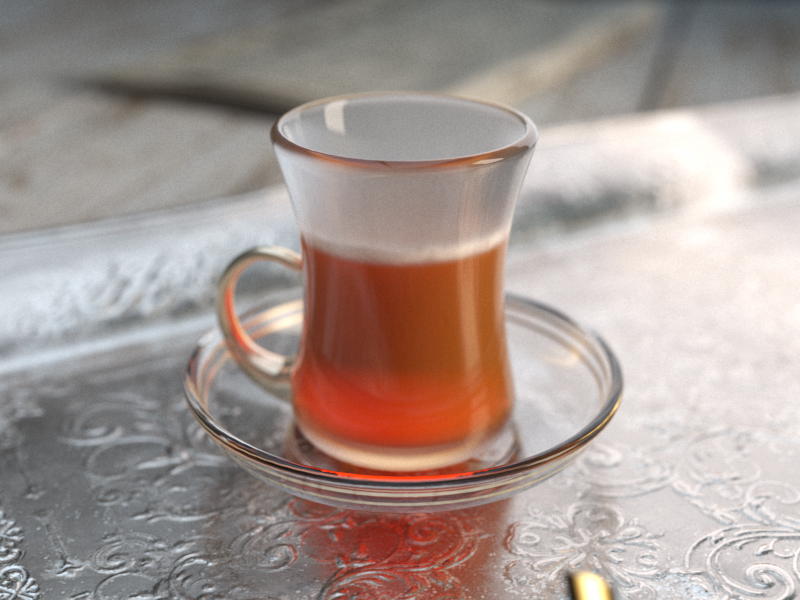

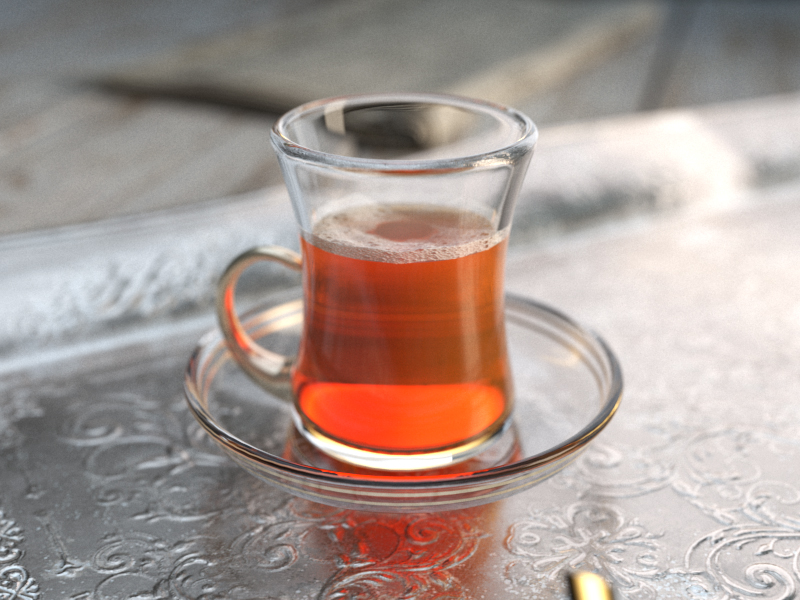

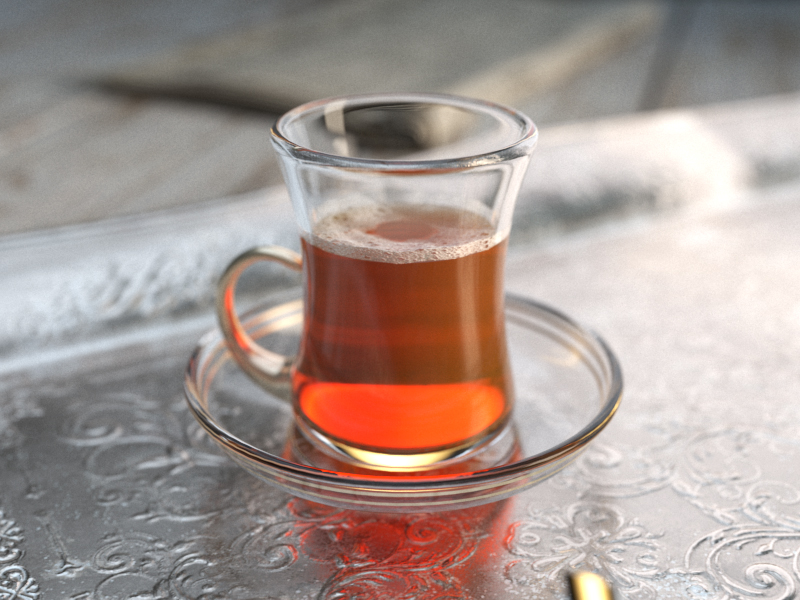

Glossiness – Controls the sharpness of refractions. A value of 1.0 means perfect glass-like refraction; lower values produce blurry or glossy refractions. For more information, see the Refraction Glossiness example below.

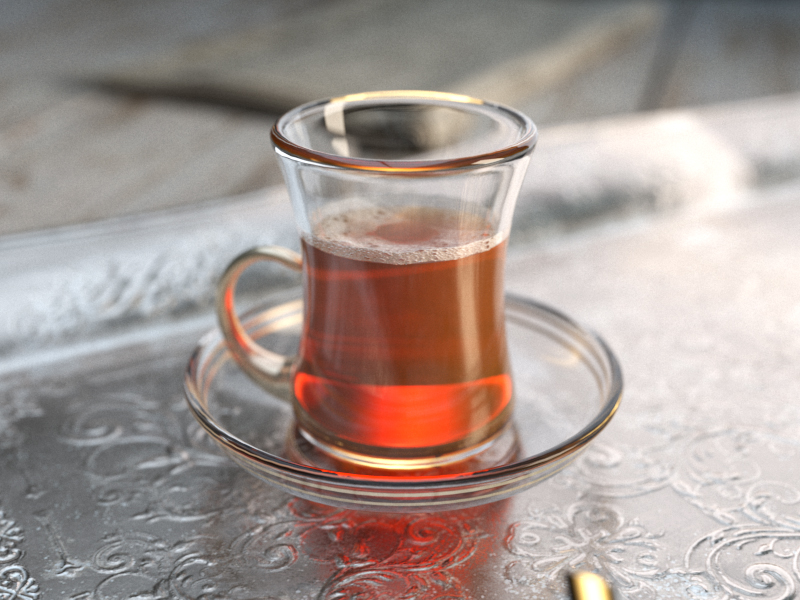

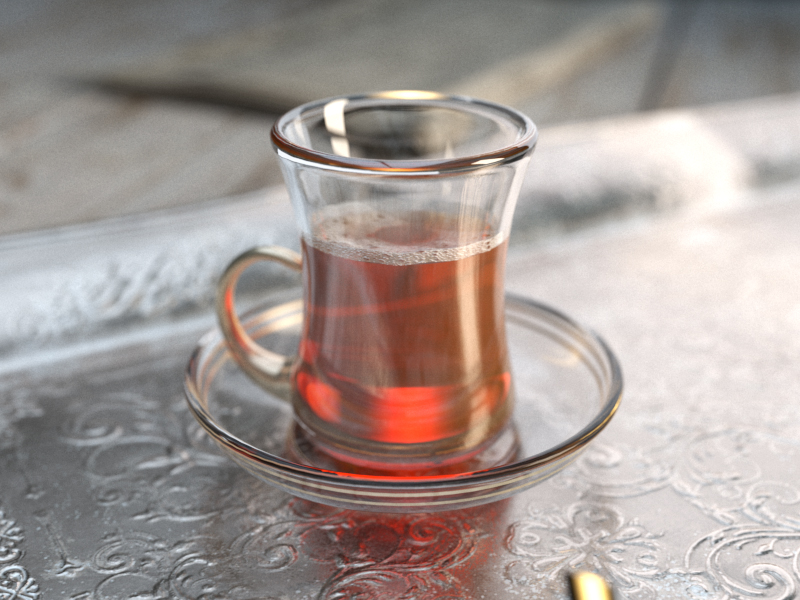

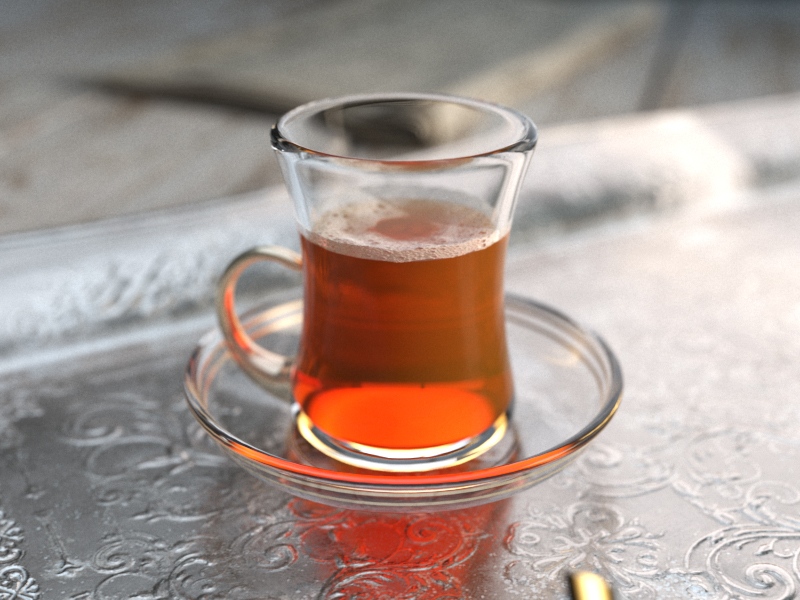

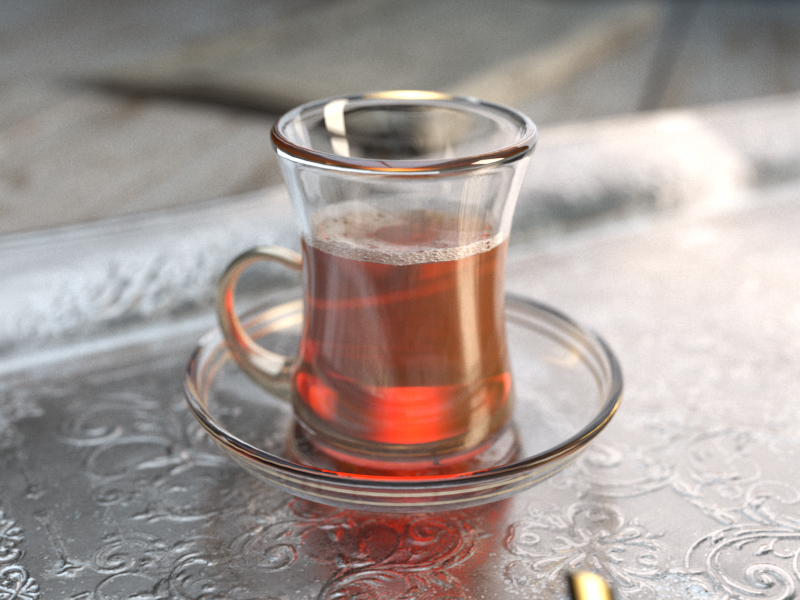

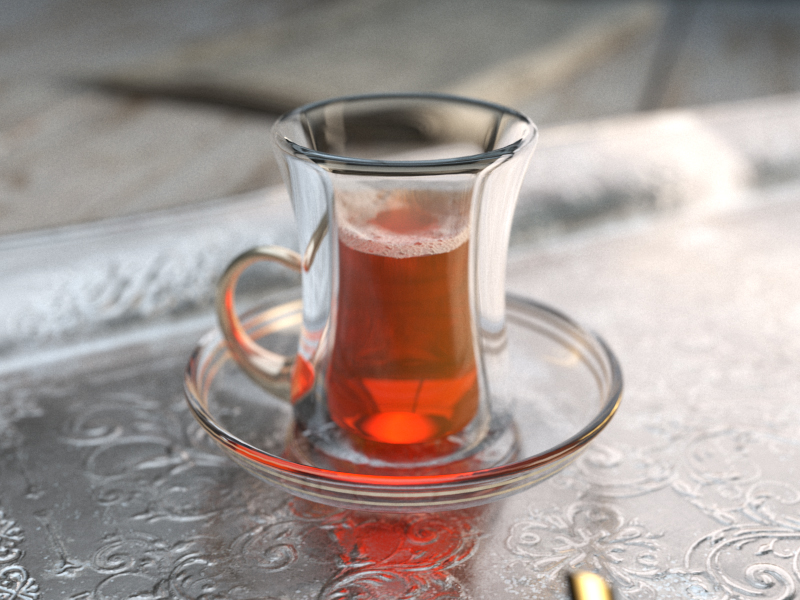

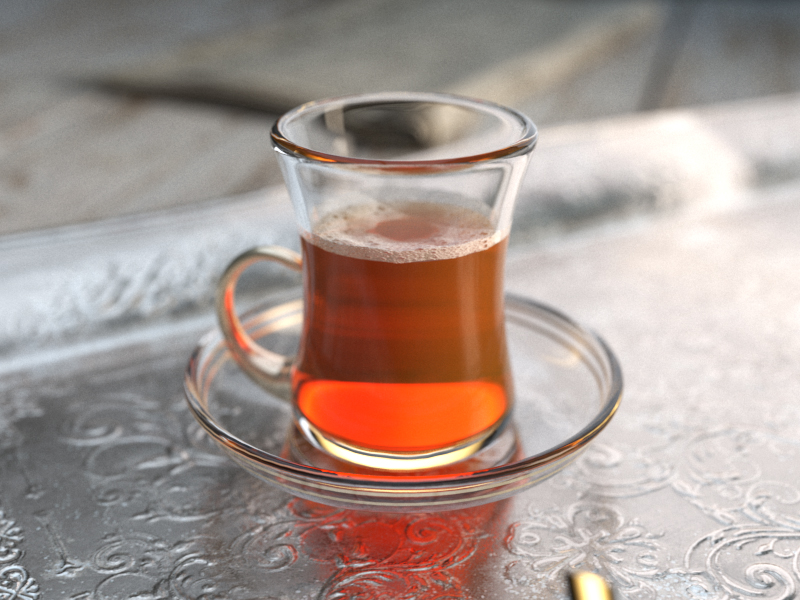

IOR – Specifies the index of refraction for the material, which describes the way light bends when crossing the material surface. A value of 1.0 means the light does not change direction. This parameter can be mapped with a texture in the Maps rollout. For more information, see the Refraction IOR example below.

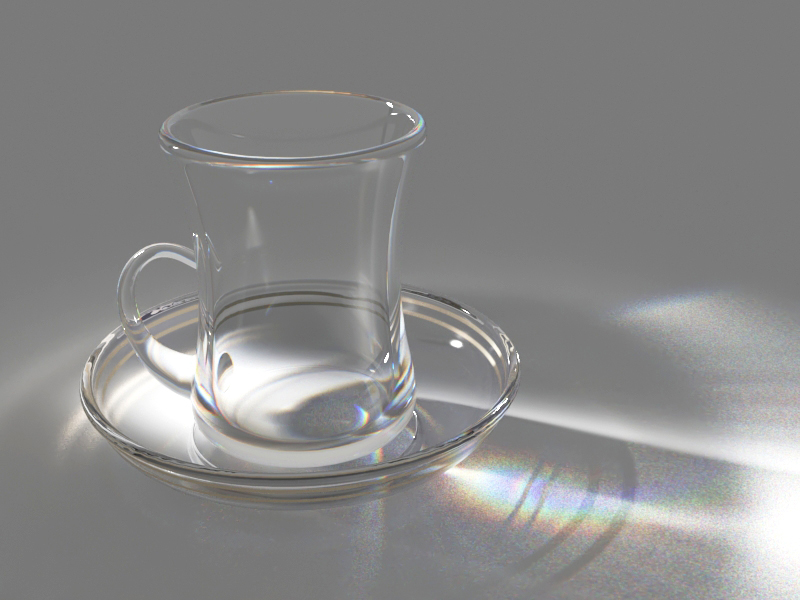

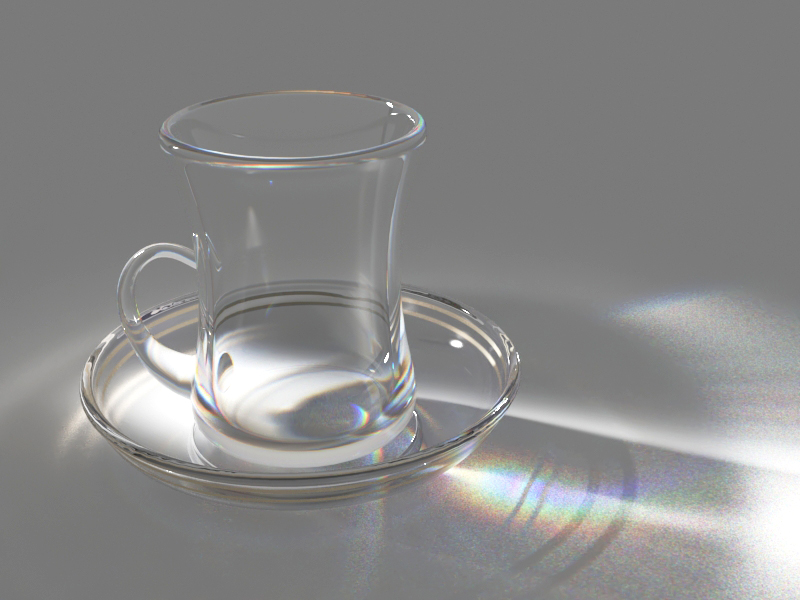

Abbe number – Increases or decreases the dispersion effect. Enabling this option and lowering the value widens the dispersion and vice versa. For more information, see the Abbe Number example below.

Affect Channels – Specifies which channels are affected by the transparency of the material.

Color Only – The transparency affects only the RGB channel of the final render.
Color+alpha – The material transmits the alpha of the refracted objects instead of displaying an opaque alpha. Note that currently, this works only with clear (non-glossy) refractions.
All channels – All channels and render elements are affected by the transparency of the material.

When selecting the Affect All channels option, be aware that the information of the respective component affects all render elements, therefore the Back to Beauty composition will not match the RGB result from the renderer.

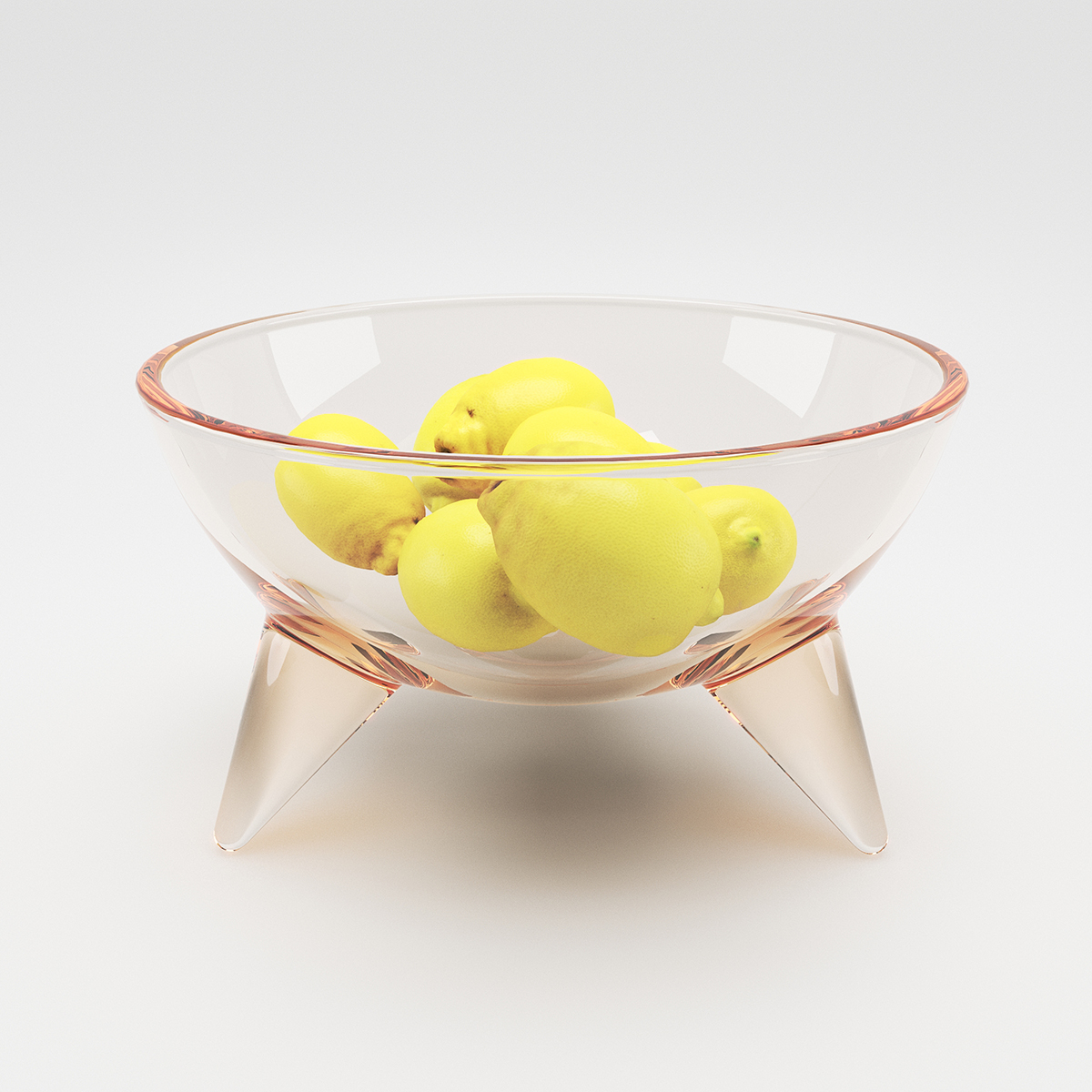

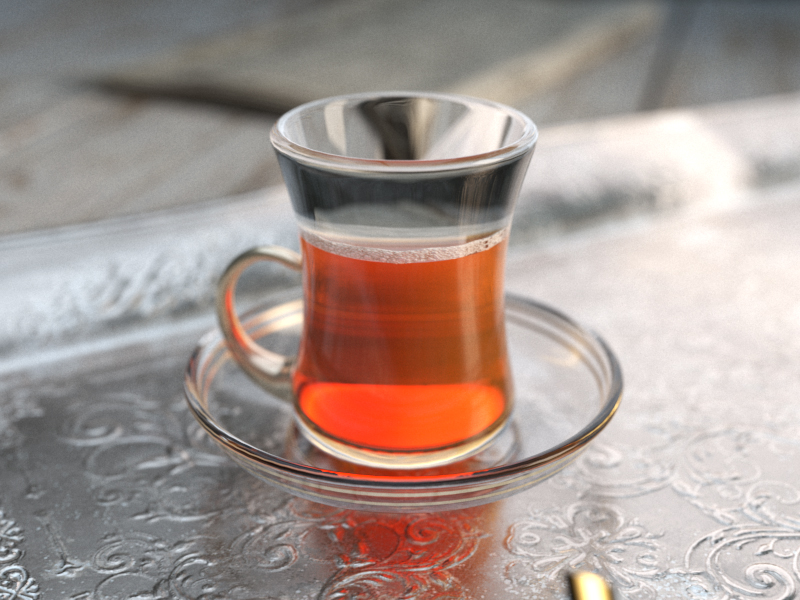

Max depth – Specifies the number of times a ray can be refracted. Scenes with lots of refractive and reflective surfaces may require higher values to look right. For more information, see the Refraction Depth example below.

Affect shadows – When enabled, the material casts transparent shadows to create a simple caustic effect dependent on the refraction color and the fog color. For accurate caustic calculations, disable this parameter and instead enable Caustics in the GI tab. Simultaneous usage of both Caustics and Affects Shadows can be used for artistic purposes but do not produce a physically correct result. This only works with V-Ray shadows and lights.

Thin-walled – (intended for single-surface transparent materials) When enabled and the Translucency mode is set to SSS, it simulates thin translucent surfaces such as soap bubble, leaves, curtains, etc. The SSS color defines the backside color, while the SSS amount controls the translucency effect.

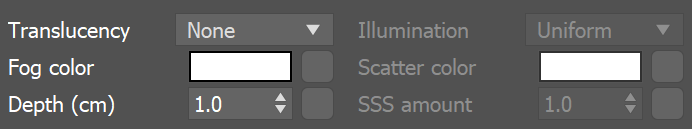

Translucency

Translucency – Selects the algorithm for calculating translucency (also called sub-surface scattering). Note that refraction must be enabled for this effect to be visible.

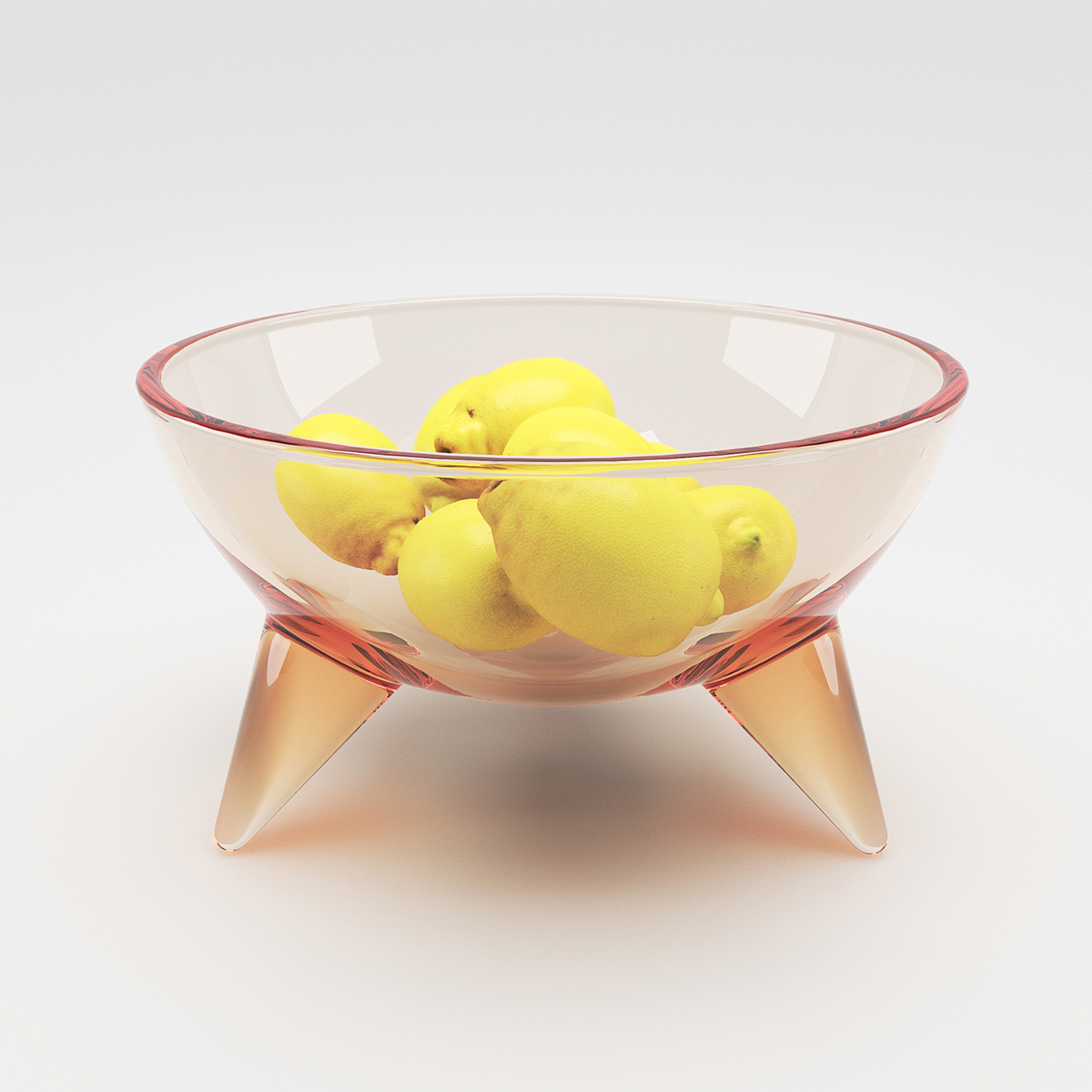

None – When selected, the only available parameters are the Fog color and Fog depth. Together with the Refraction color, they determine the attenuation of light as it passes through the material. In this mode, there is no subsurface scattering.

Error rendering macro 'scroll-html-expand'

Problem executing proxy for macro 'expand'. Check the log.

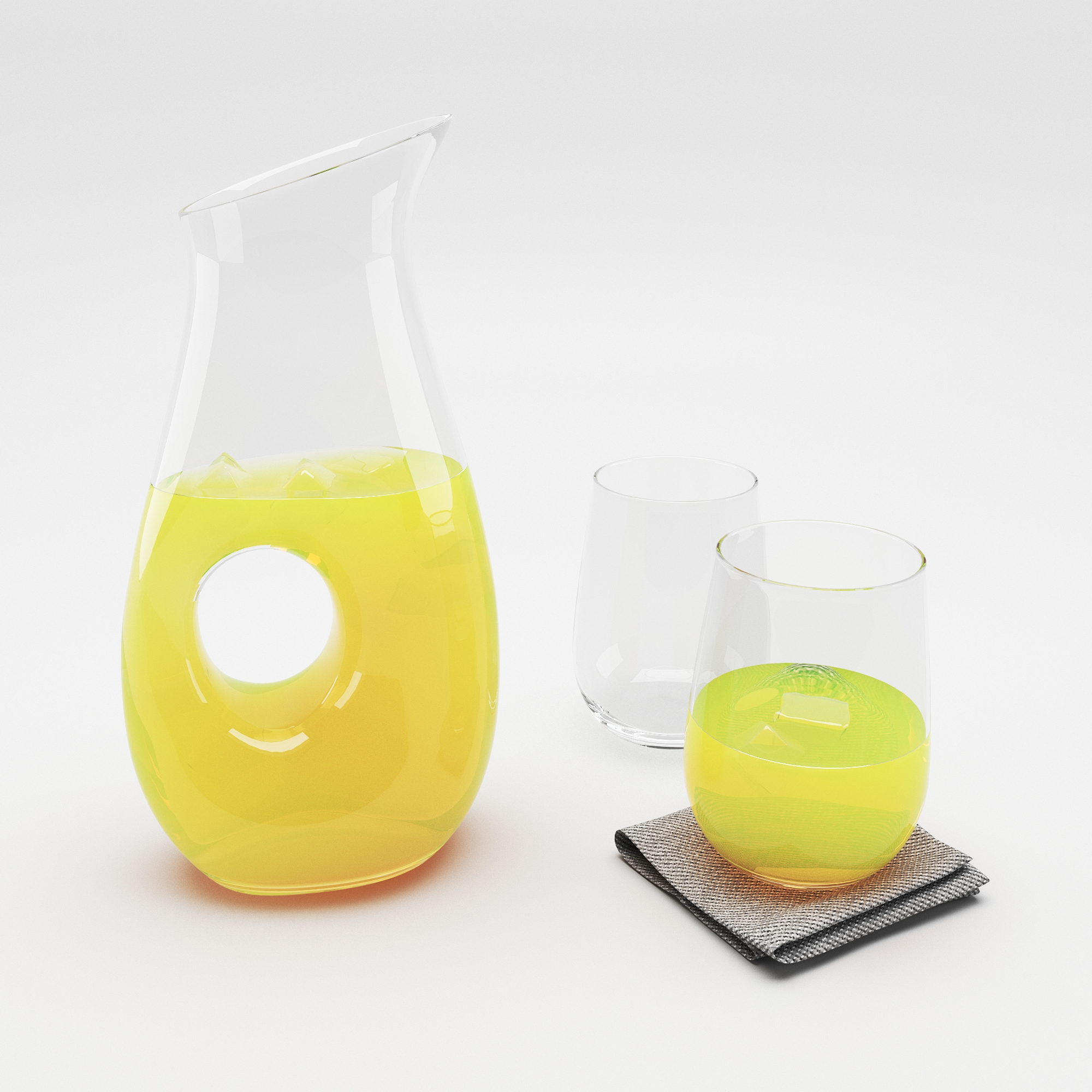

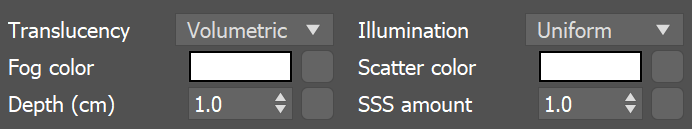

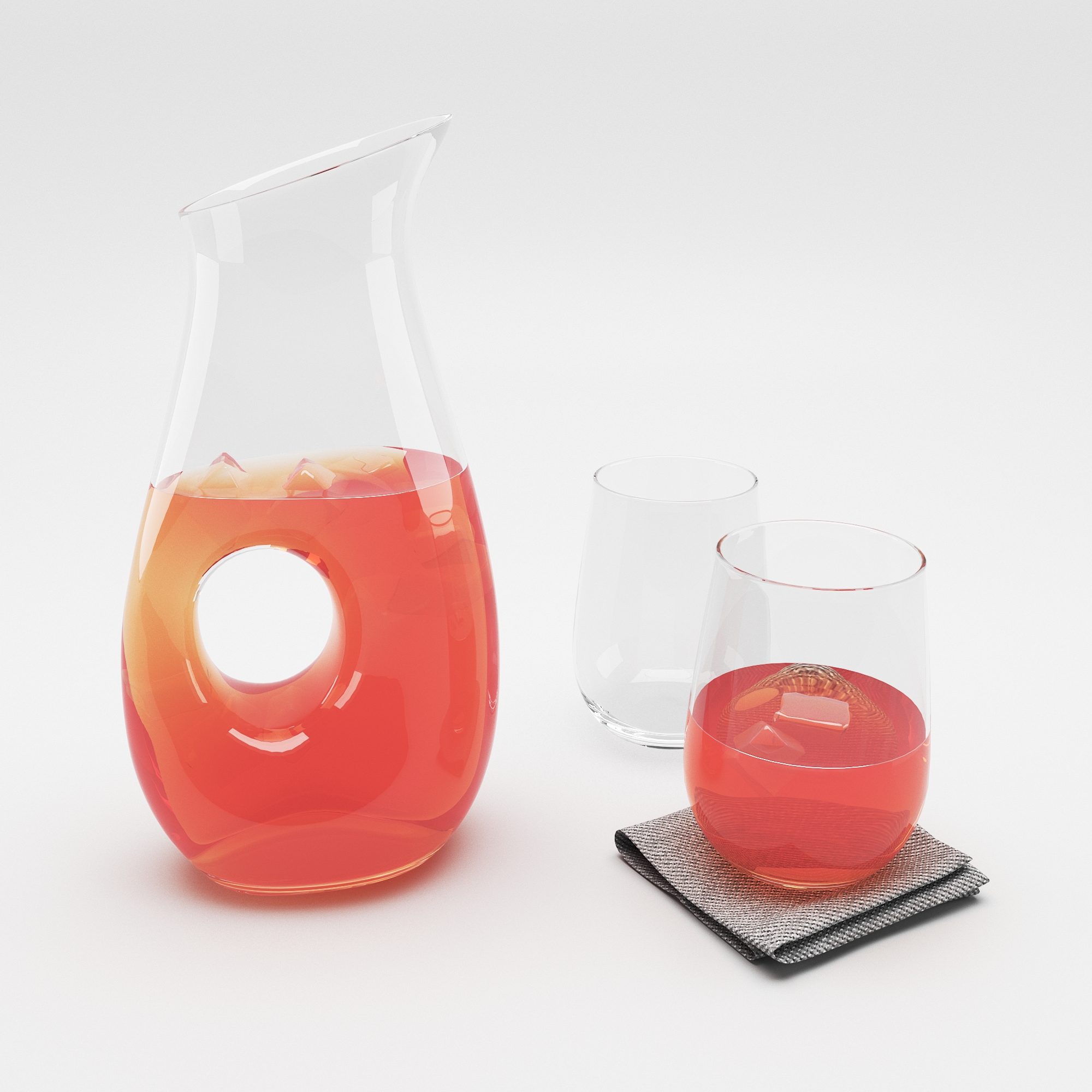

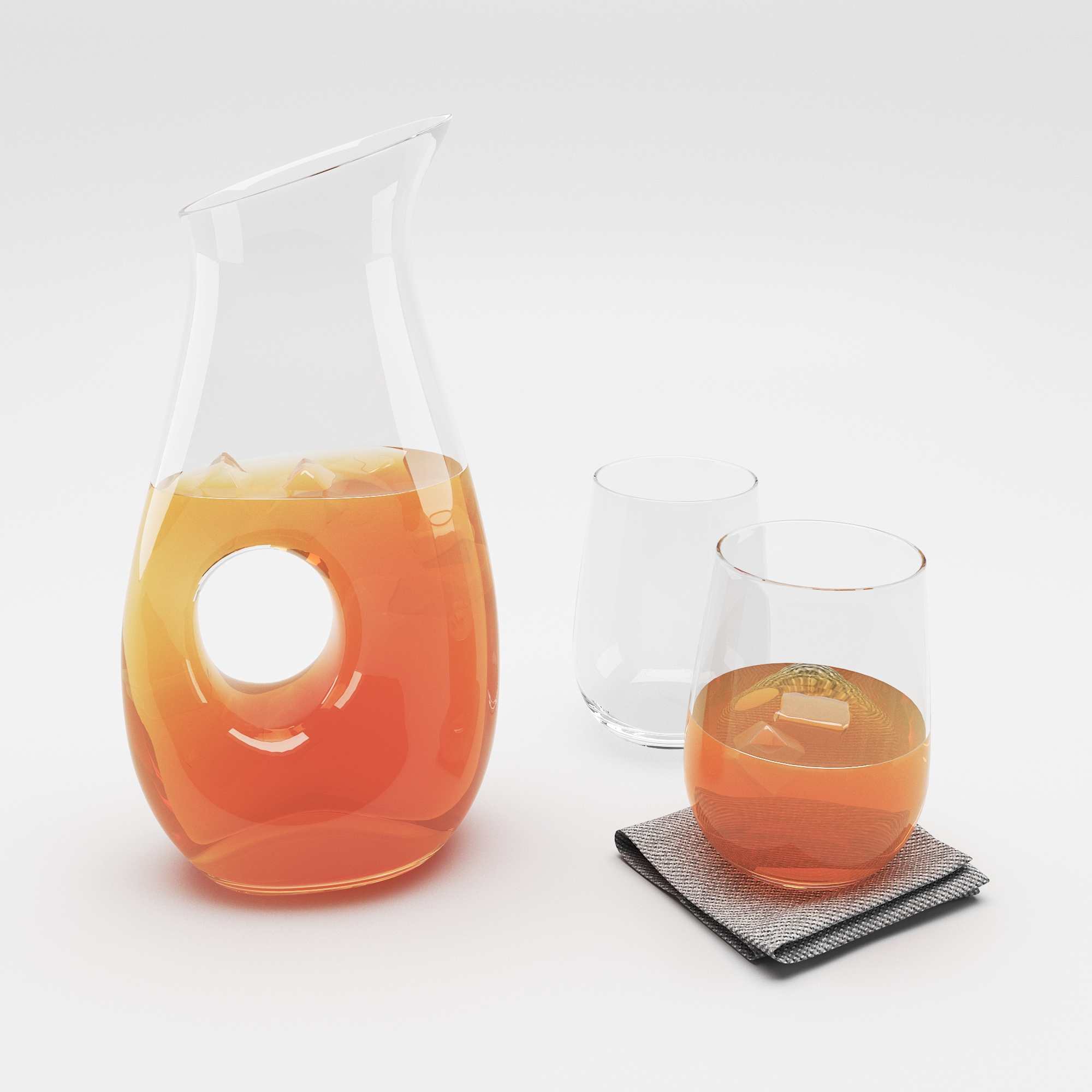

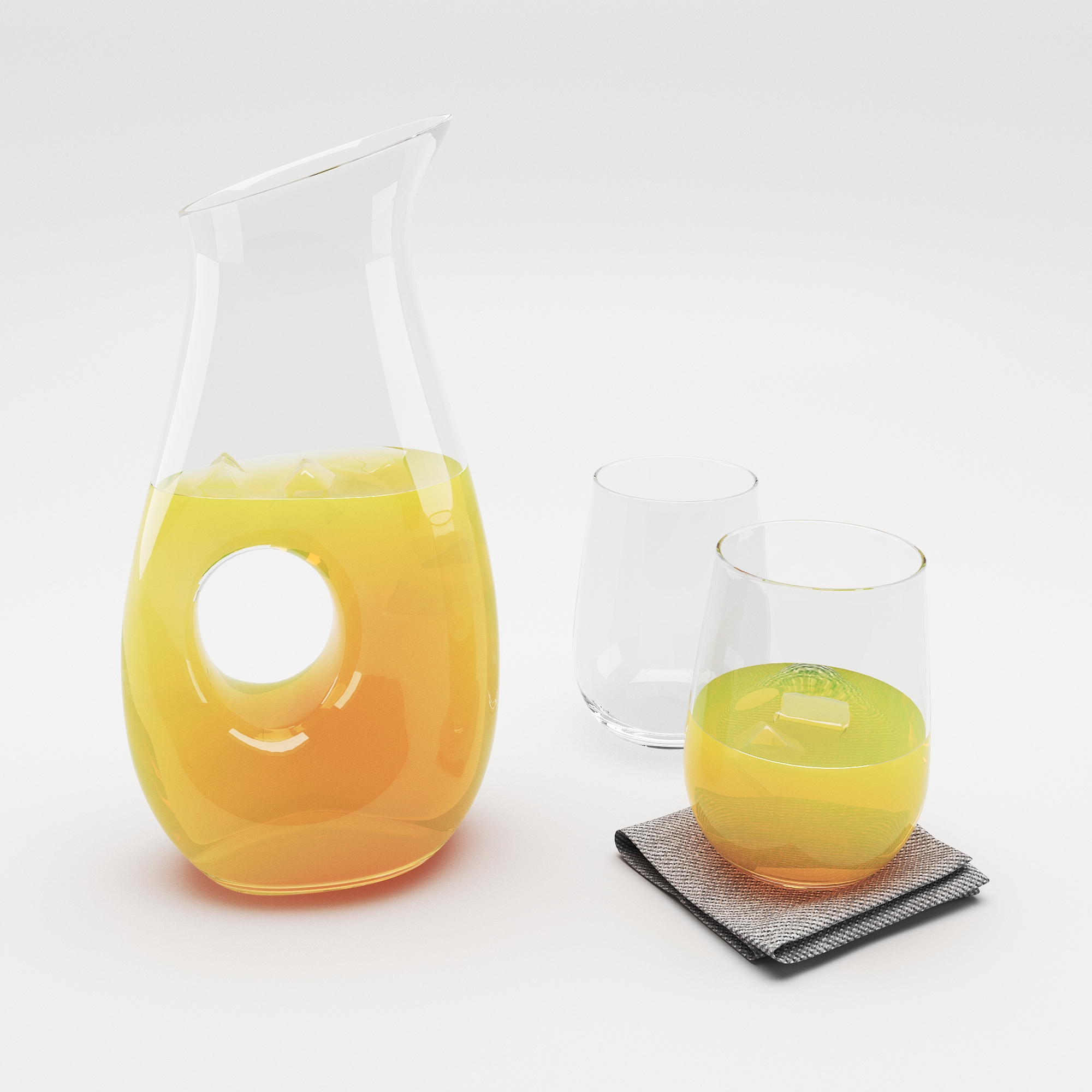

Volumetric – Works together with the Refraction color of the material to scatter light inside the object. It is useful for liquids and other highly transparent materials. The Refraction color and Refraction glossiness determine respectively how much of the interior of the object is visible and how rays interact with the object’s surface.

Error rendering macro 'scroll-html-expand'

Problem executing proxy for macro 'expand'. Check the log.

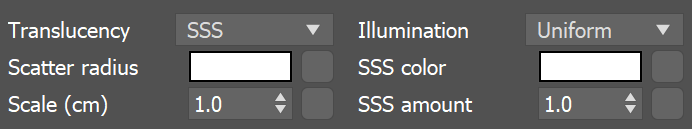

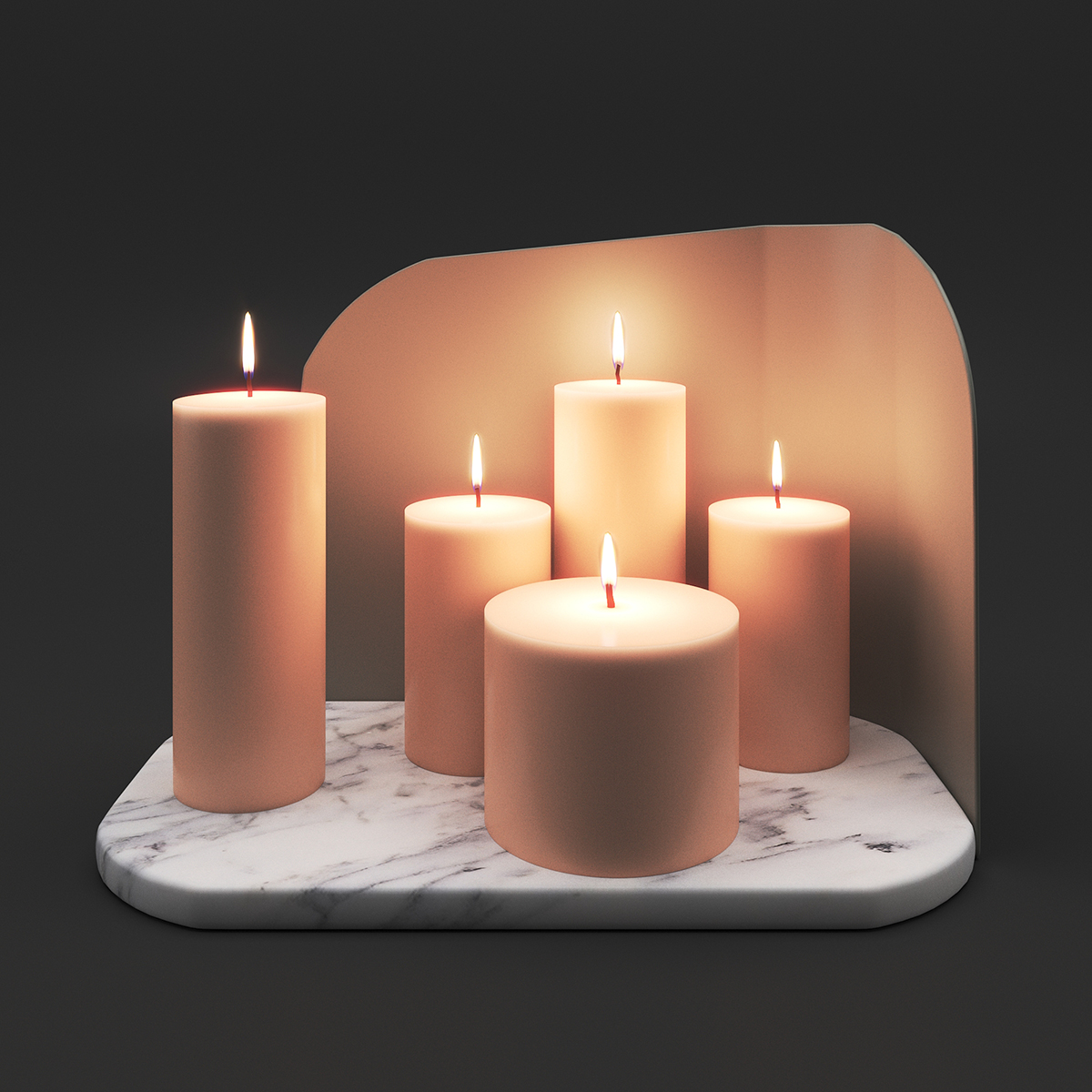

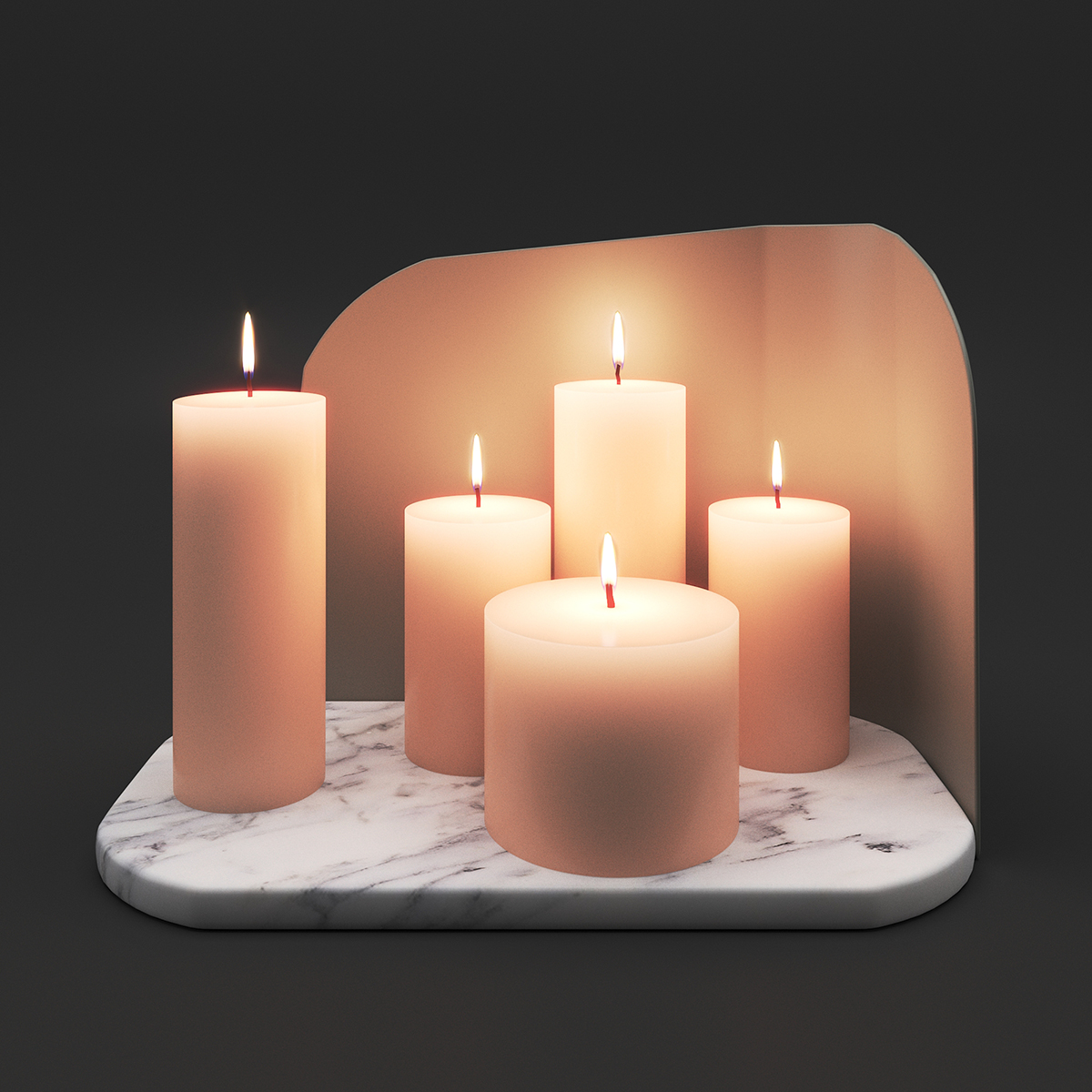

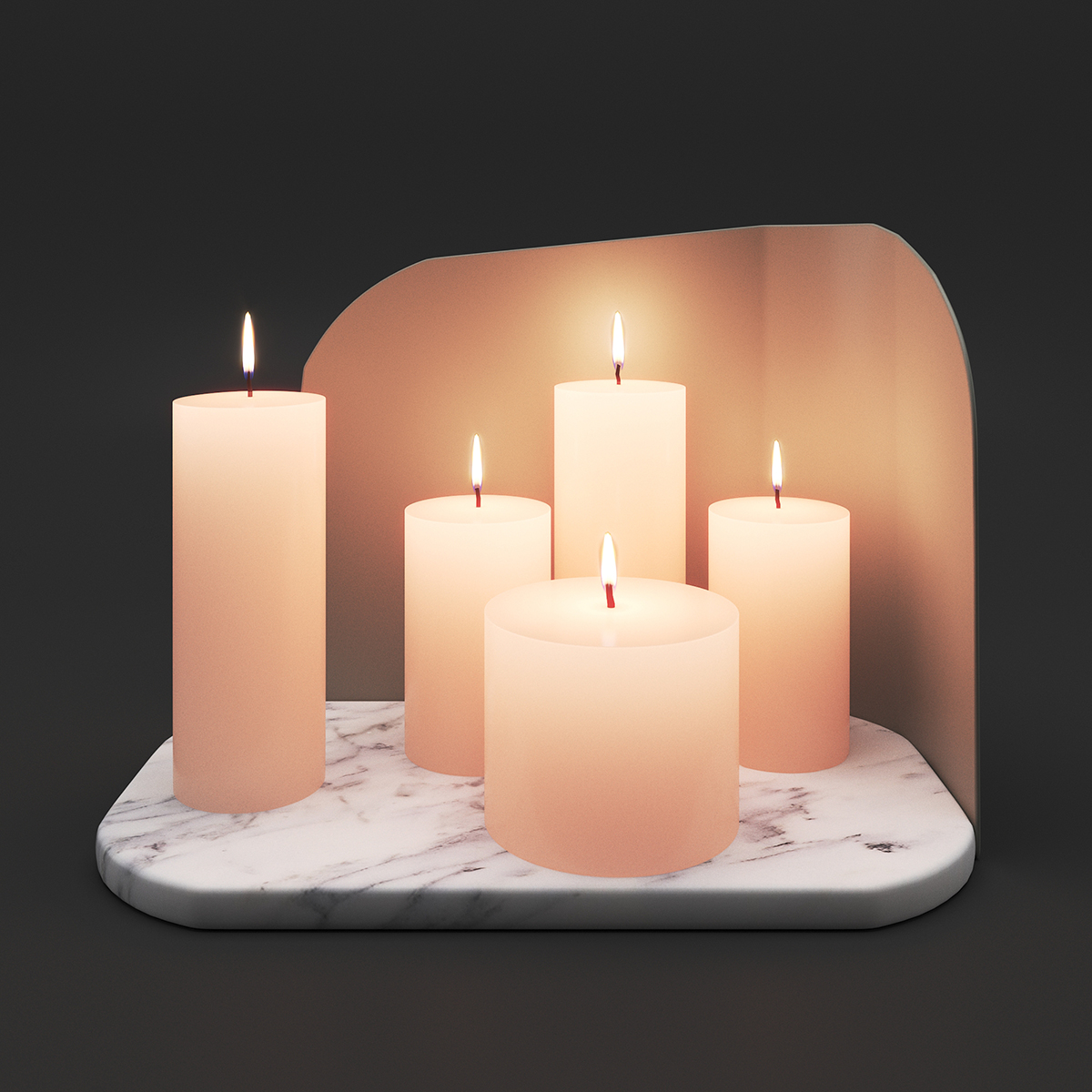

SSS – Useful for skin, wax, marble and other relatively opaque materials.

Error rendering macro 'scroll-html-expand'

Problem executing proxy for macro 'expand'. Check the log.

With V-Ray 5, update 1, the translucency modes for VRayMtl are updated based on the volumetric random walk code originally developed for the VRayScatterVolume material. However, the implementation in the VRayMtl is updated and slightly more advanced compared to VRayScatterVolume. The old translucency modes are still there and will be shown if scenes with a VRayMtl that uses one of them is loaded. With newly created materials, only the new two modes are available.

As the new translucency modes perform multibounce volumetric light scattering, they require closed objects.

The new translucency modes require GI with minimum 16 bounces (brute force or light cache). They also require the Affect shadows option of the material to be enabled.

Error rendering macro 'scroll-html-expand'

Problem executing proxy for macro 'expand'. Check the log.

Self-Illumination

Self-Illumination – Controls the emission of the surface. This parameter can be mapped with a texture in the Maps rollout.

GI – When enabled, the self-illumination affects global illumination rays and allows the surface to cast light on nearby objects. Note, however, that it may be more efficient to use area lights or VRayLightMtl material for this effect.

Mult – Specifies a multiplier for the self-illumination effect. This is useful for boosting the self-illumination values so that the surface produces stronger illumination with GI.

Compensate camera exposure – When enabled, the intensity of the Self-Illumination is adjusted to compensate the exposure correction from the physical camera.

Coat

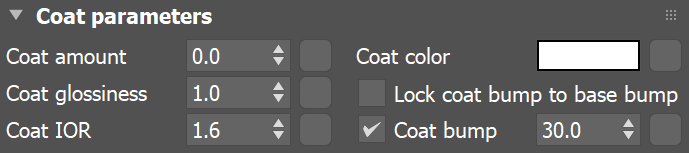

Coat amount – Specifies the blending weight of the coat layer. A value of 0 does not add a coat layer, while higher values blend the coat gradually.

Coat glossiness – Controls the sharpness of reflection. A value of 1.0 means perfect glass-like reflection; lower values produce blurry or glossy reflections.

Coat IOR – Specifies the Index of Refraction for the coat layer.

Coat color – Determines the coat layer's color. A texture map can be used here.

Lock coat bump to base bump – When enabled, it prioritizes the base bump map during rendering over the coat bump map. You can use it to temporarily hide the coat bump.

Coat bump – Controls the texture used for the coat layer.

Thin Film

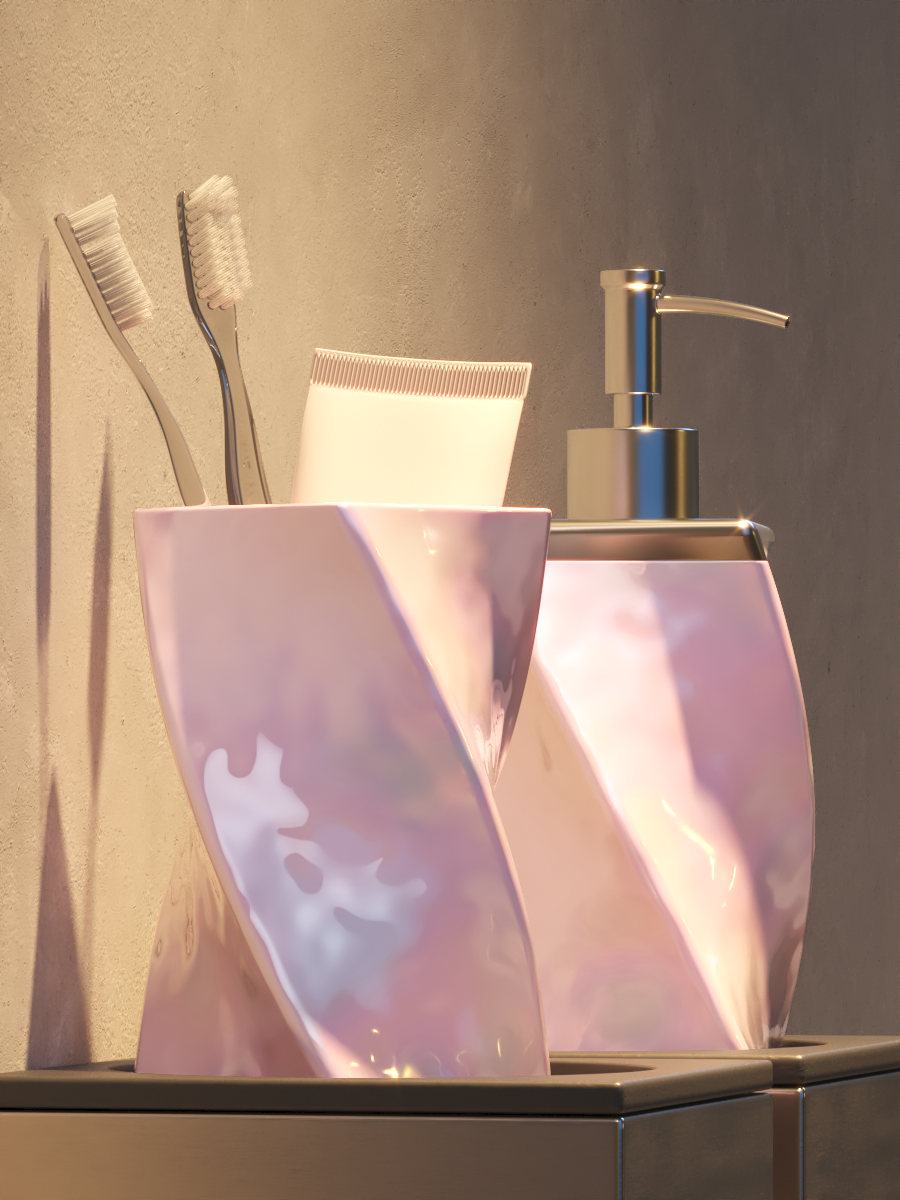

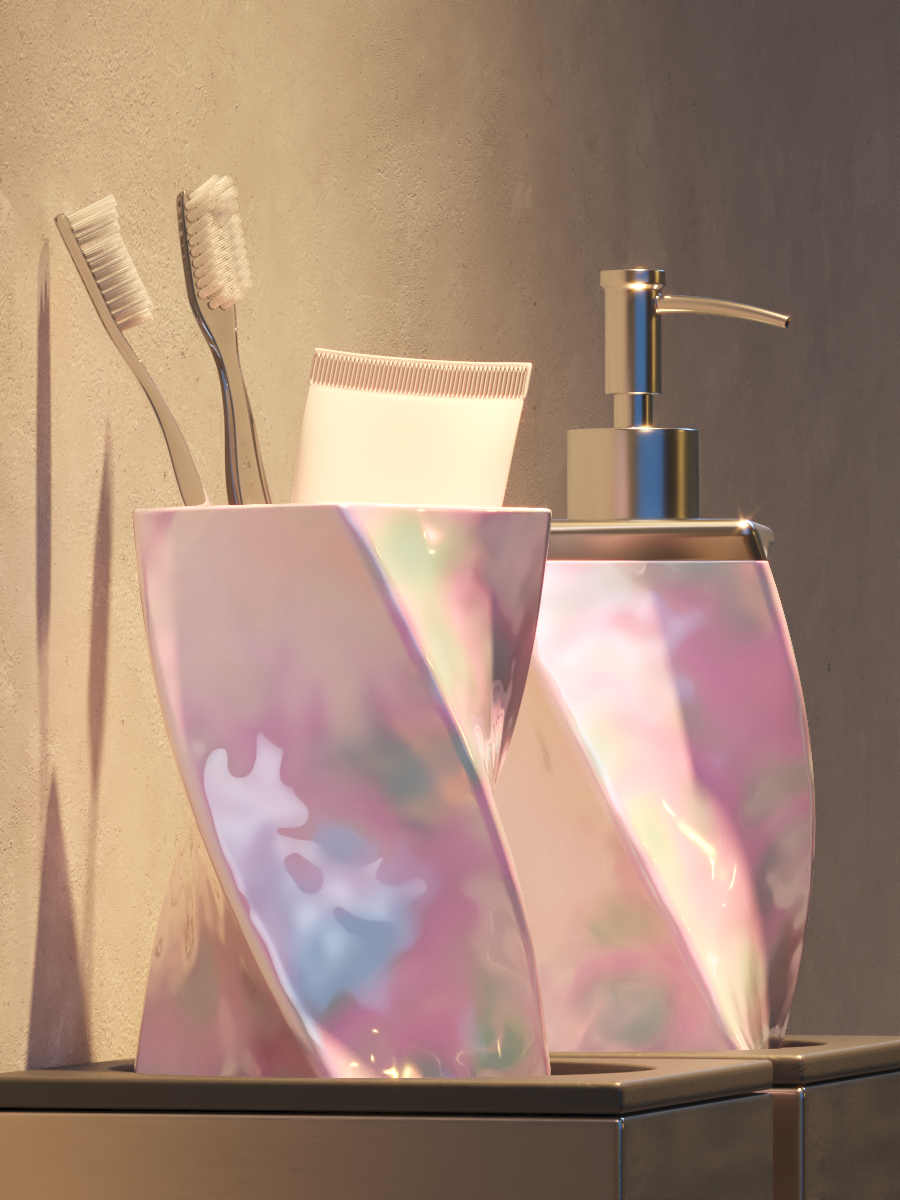

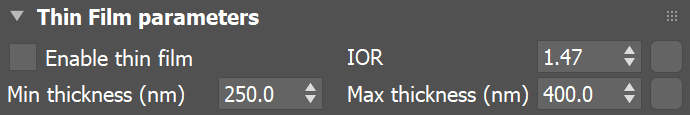

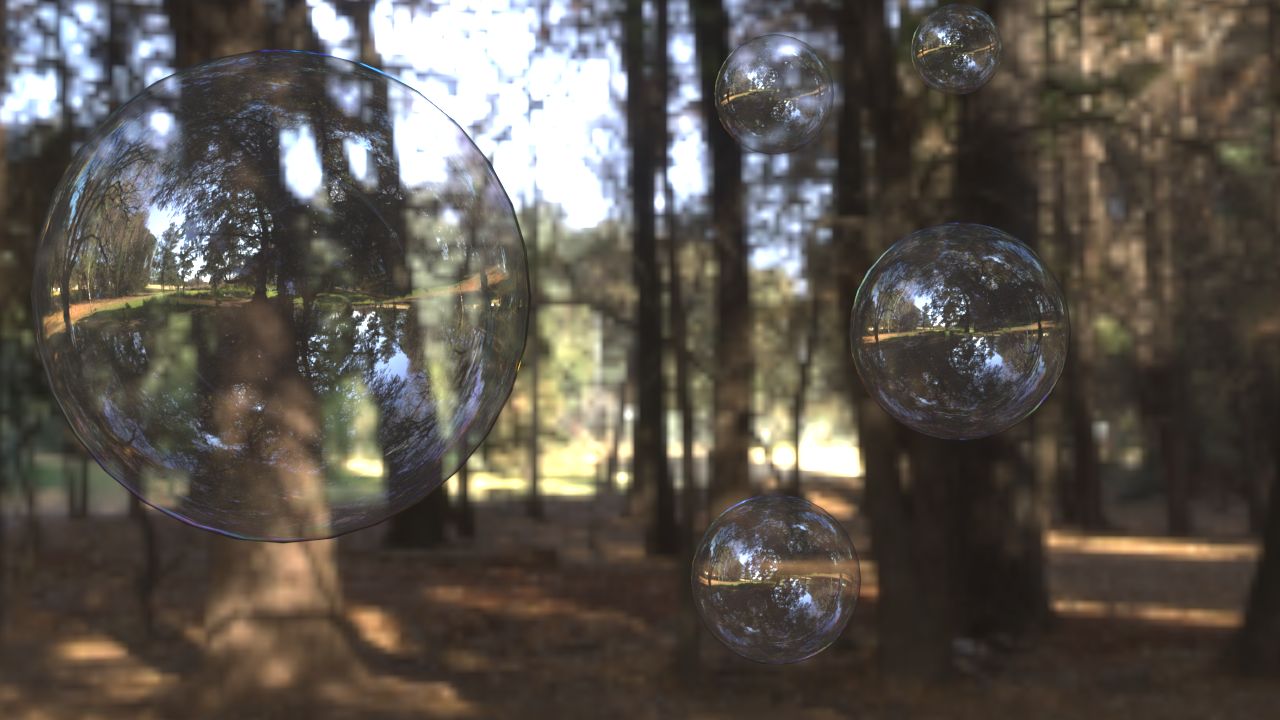

Thin Film recreates the effect of thin film interference on a surface making the material iridescent. Some common uses are soap bubbles and reflective car paint layering.

Enable thin film – Turns on/off the thin film effect.

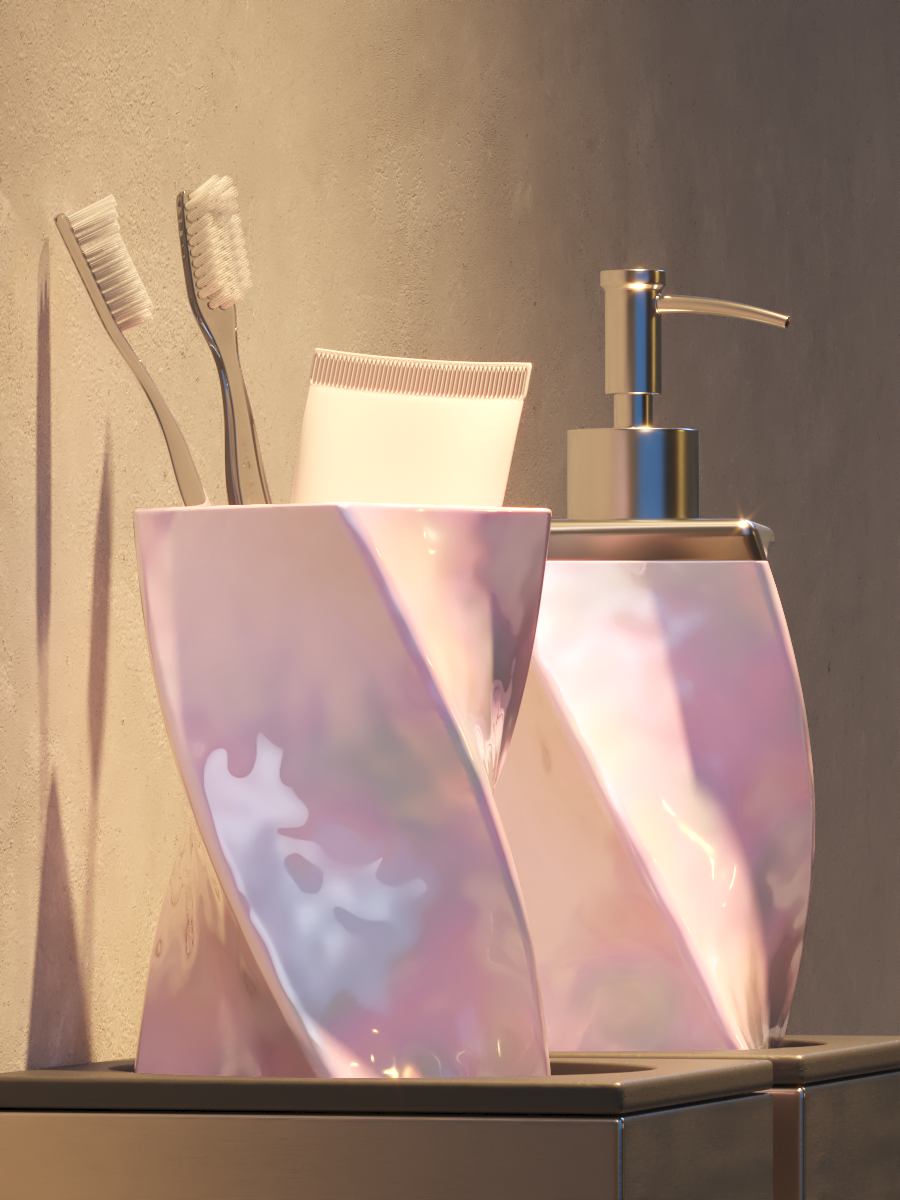

IOR – Specifies the reflective index of the thin film. A map can be attached to this slot. For more information, see the Thin Film IOR example below.

Min thickness (nm) – Determines the minimum thickness of the thin film. For more information, see the Thin Film Thickness example below.

Max thickness (nm) – Determines the maximum thickness of the thin film. A map can be used to blend between the Min and Max thickness parameters, and is expected to be in the range of 0-1. If there is no texture map, only the Min thickness value is used.

Sheen

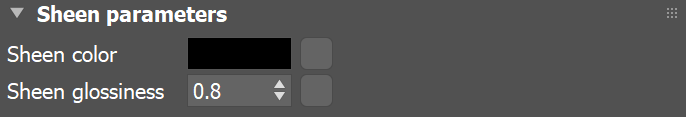

The Sheen layer can be used for creation of cloth material, such as satin. Sheen layer is a top reflective layer to the diffuse color.

Sheen color – Specifies the color of the sheen layer.

Sheen glossiness – Controls the sharpness of reflections. A value of 1.0 means all of the light reaches the diffuse color, and when the value is smaller, the cloth material looks glossier. For more information, see the Sheen Glossiness example below.

The Sheen component respects the Preserve energy option that can be found in VRayMtl > Options > Preserve energy .

BRDF

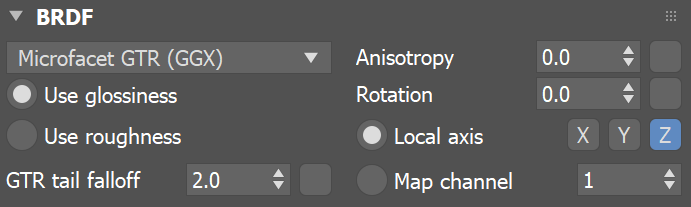

BRDF parameters determine the type of the highlights and glossy reflections for the material. The parameters have an effect only if the reflection color is different from black and reflection glossiness is different than 1.0.

Type – Determines the type of BRDF (the shape of the highlight). For more information, see the BRDF Type Example below.

Phong – Phong highlight/reflections. Specular highlights have a bright center with no falloff.
Blinn – Blinn highlight/reflections. Specular highlights have a bright center with a tight falloff.

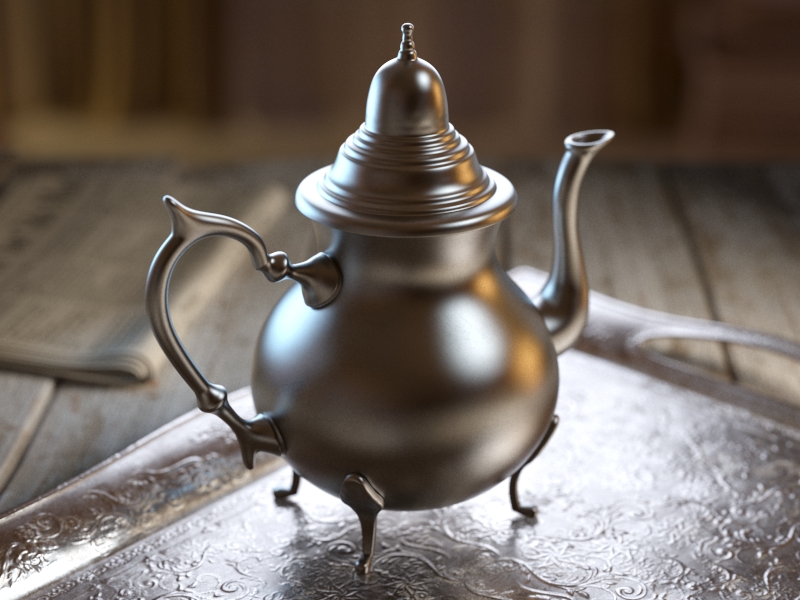

Ward – Ward highlight/reflections. Specular highlights have a bright center with a falloff broader than Blinn, but tighter than Microfacet GTR (GGX).
Microfacet GTR (GGX) – GGX highlight/reflections. Specular highlights have a bright center with a longer falloff.

GGX is the most modern and flexible BRDF type and is able to better represent a broad range of materials thanks to its ability to control the shape of the specular lobe.

There currently isn't any particular performance difference between models and there is little reason to choose any of the other types.

Error rendering macro 'scroll-html-expand'

Problem executing proxy for macro 'expand'. Check the log.

Use glossiness / Use roughness – These options control how Reflection Glossiness is interpreted. When Use glossiness is selected, the Glossiness value is used as is, and a high Glossiness value (such as 1.0) results in sharp reflection highlights. When Use roughness is selected, the Reflection Glossiness inverse value is used. For example, if Reflection Glossiness is set to 1.0 and Use roughness is selected, this results in diffuse shading. Conversely, if Glossiness is set to 0.0 and Use roughness is selected, this results in sharp reflection highlights. Note that the Roughness parameter itself has no bearing on the results of this option.

GTR tail falloff – Controls the transition from highlighted areas to non-highlighted areas when the BRDF type is set to Microfacet GTR (GGX).

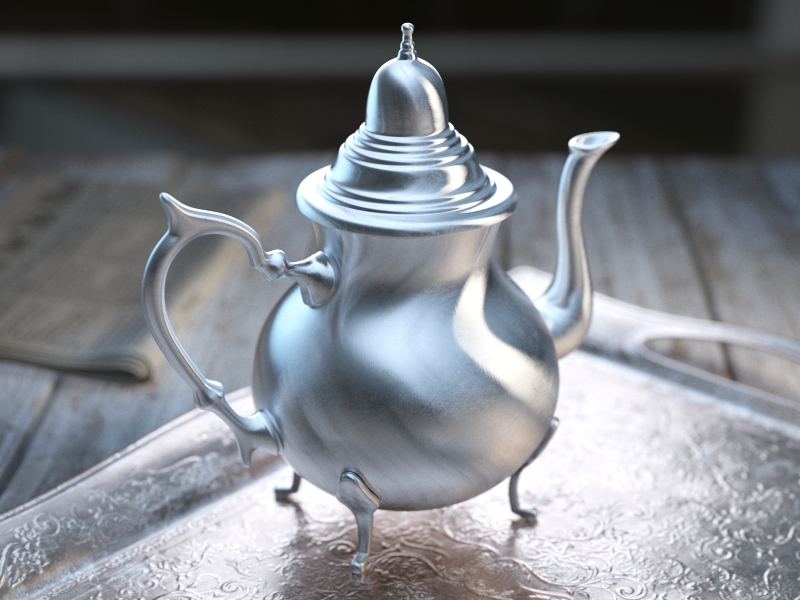

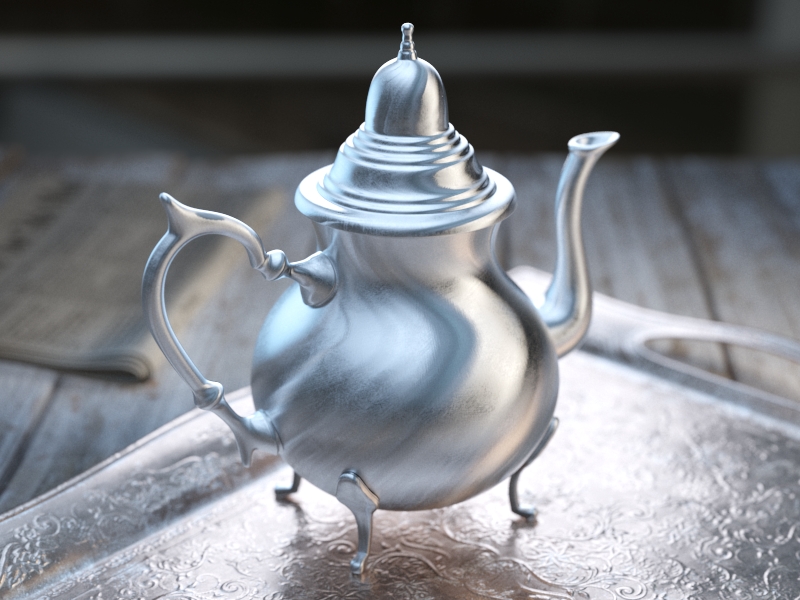

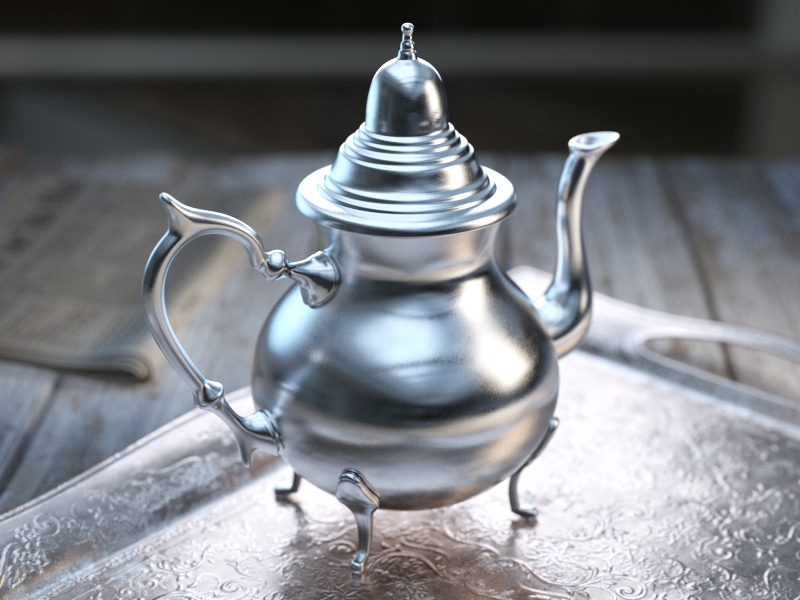

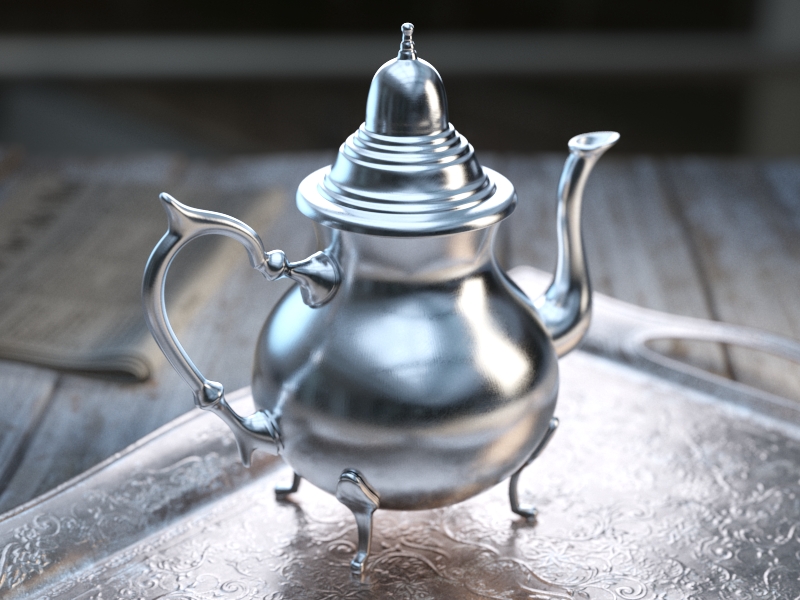

Anisotropy – D etermines the shape of the highlight. A value of 0.0 means isotropic highlights. Negative and positive values simulate 'brushed' surfaces. The accepted values are in the range from 0.99 to -0.99. For more information, see the Anisotropy example below.

Rotation – Determines the orientation of the anisotropic effect in degrees. For more information, see the Anisotropy example below.

Local axis – When enabled, the orientation of the anisotropic highlight is based on the object's local X, Y, or Z axis.

Map channel – When enabled, the orientation of the anisotropic highlight is based on the specified map channel.

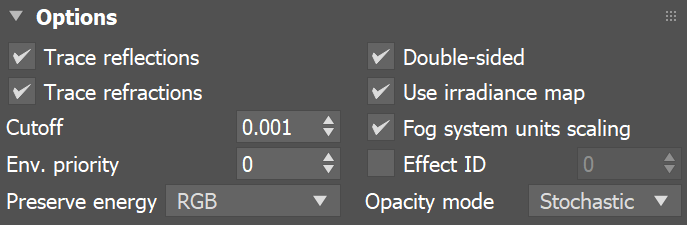

Options

Trace reflections – When disabled, reflections are not traced even if the reflection color is greater than black. This can be disabled to produce only highlights. Note that when disabling this parameter the diffuse color is not dimmed by the reflection color, as would happen normally.

Trace refractions – When disabled, refractions are not traced even if the refraction color is greater than black.

Cutoff – Specifies a threshold below which reflections/refractions are not traced. V-Ray tries to estimate the contribution of reflections/refractions to the image, and if it is below this threshold, these effects are not computed. Do not set this to 0.0 as it may cause excessively long render times in some cases. This parameter is not available when the renderer is set to GPU.

Env. priority – Determines the environment to use if a reflected or refracted ray goes through several materials, each of which has an environment override.

Double-sided – When enabled, V-Ray calculates separately the shading for the back faces of surfaces with this material. W hen disabled, the back faces are shaded the same as the front faces.

Use irradiance map – When enabled, the irradiance map is used to approximate diffuse indirect illumination for the material. When disabled, brute force GI is used in which case the quality of the brute force GI is determined by the Subdivs parameter of the Irradiance Map. This can be used for objects in the scene which have small details and are not approximated very well by the irradiance map. This parameter is not available when the renderer is set to GPU.

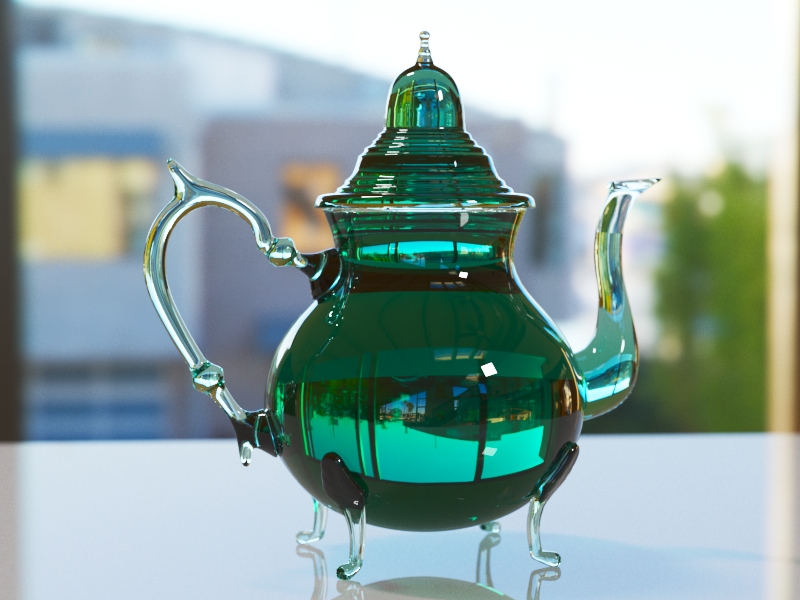

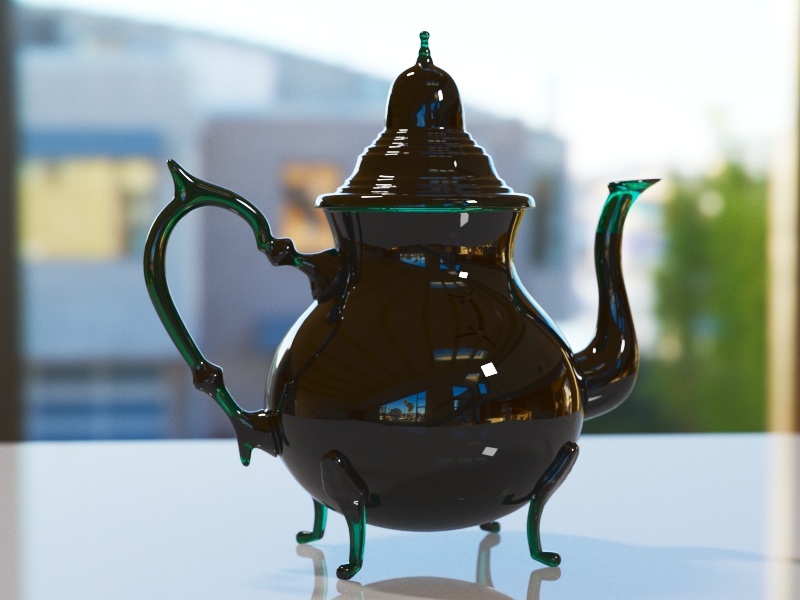

Fog system units scaling – When enabled, the fog color attenuation becomes dependent on the current system units. For more information, see the Fog System Units Scaling example below.

Effect ID – When enabled, specifies input values for Material ID for the override material effect.

Preserve energy – Determines how the diffuse, reflection, and refraction color affect each other. V-Ray tries to keep the total amount of light reflected off a surface to be less than or equal to the light falling on the surface (as this happens in the real life). For this purpose, the following rule is applied: the reflection level dims the diffuse and refraction levels (a pure white reflection removes any diffuse and refraction effects), and the refraction level dims the diffuse level (a pure white refraction color removes any diffuse effects). This parameter determines whether the dimming happens separately for the RGB components or is based on the intensity. For more information, see the Energy Preservation Mode example below.

RGB – Causes dimming to be performed separately on the RGB components. For example, a pure white diffuse color and pure red reflection color give a surface with cyan diffuse color (because the red component is already taken by the reflection).
Monochrome – Causes dimming to be performed based on the intensity of the diffuse/reflection/refraction levels.

Opacity mode – Controls how opacity is sampled. For more information, see the Opacity mode parameter example below. This parameter is not available when the renderer is set to GPU.

Normal – (Legacy) The opacity map is evaluated as normal: the surface lighting is computed and the ray is continued for the transparent effect. The opacity texture is filtered as normal.

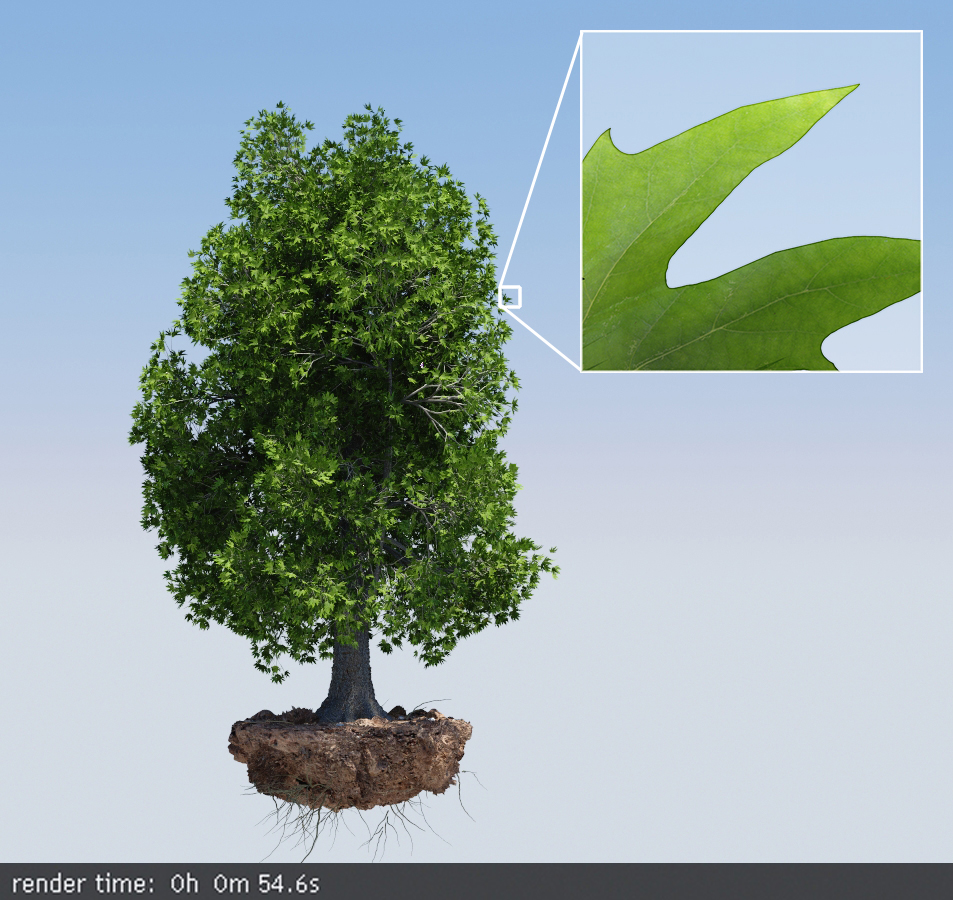

Clip – (Very fast) The opacity texture is not filtered and it is clipped to either fully opaque or fully transparent based on the mid-point value. Useful when there are many transparent surfaces one behind the other like leaves.
Stochastic – (Optimal) The opacity texture is filtered and the surface is randomly shaded as either fully opaque or fully transparent for a correct average appearance.

Currently, setting the Opacity mode to Clip also disables bump mapping within the material. A workaround is to load the opacity map through a VRayBitmap texture map and the bump mapping will render properly.

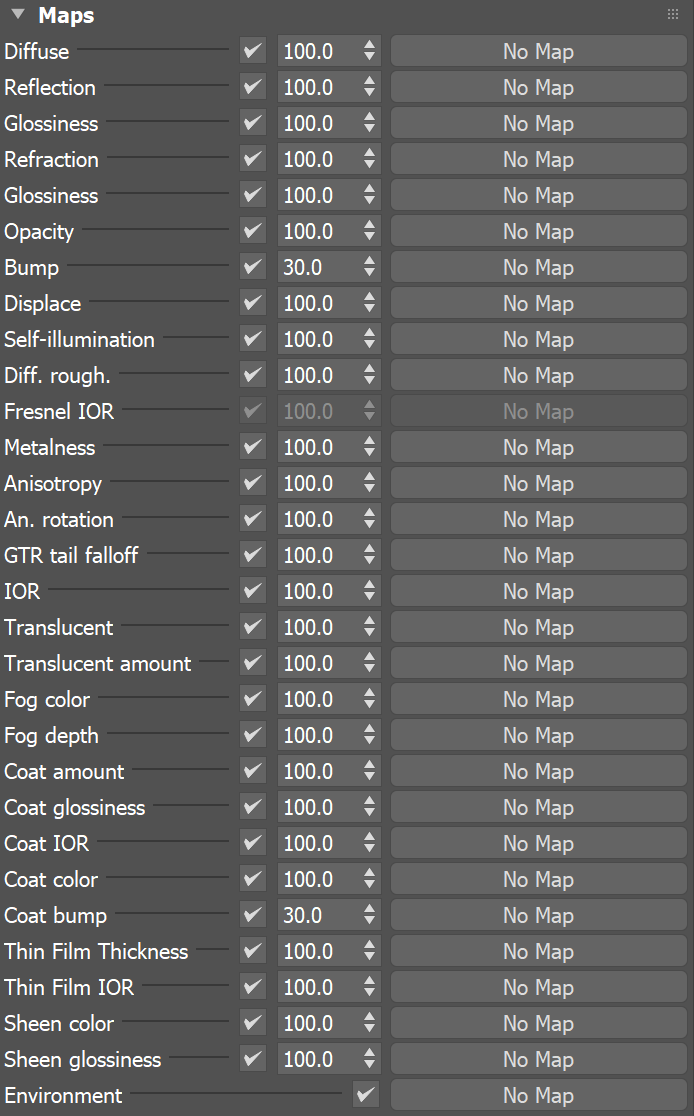

Maps

The settings on the Maps rollout determine the various texture maps used by the material.

Most of the parameters in this rollout pertain directly to parameters in the VRayMtl, and their definitions can be found in the Basic parameters and BRDF rollouts. The following parameters might not have such obvious definitions.

Reflect – This map slot sets the degree of reflectivity for the material. This functionality differs from the Reflection map slot for a Standard material, where a bitmap image can be set as the environment to reflect. To set an environment image to be reflected, use the Environment slot.

An. Rotation – The Rotation parameter in the BRDF rollout.

Translucent – Sets the degree of translucency when the Translucency option in the Basic parameters rollout is set to a selection other than None.

Environment – Specifies an environment map to use for reflections instead of the environment map for the scene. This is similar to placing a map in the Reflection slot of a Standard 3ds Max material.

Notes

• Use the VRayMtl whenever possible in your scenes. This material is specifically optimized for V-Ray and often GI and lighting is computed much faster for V-Ray materials than for standard 3ds Max materials. Many V-Ray features (e.g. Light Cache, render elements) are guaranteed to work properly only with VRayMtl and other V-Ray compliant materials.

• VRayMtl can produce reflections/refractions for matte objects – see VRayMtlWrapper.

• There's currently a known issue with setting the Opacity mode to Clip and bump mapping not rendering properly on a material. A workaround is to load the opacity map through a VRayBitmap texture map.

• Note that Sheen, Coat and Reflection components are affected by the following parameters: Use roughness, Trace Reflections, Max Depth, Dim Distance, Dim Falloff, Reflect on Back Side, Affect Channels.

• Since V-Ray 6 Fresnel reflections always include glossy Fresnel algorithm. Therefore, the Glossy Fresnel option is hidden from UI for VRayMtl and VRayToon materials.
